本案主题丨花漾 The theme of this case丨Flowers 01 / 客厅 · 享受被包裹的安全感 圆润边角的半高矮墙玄关 形成一个大的洄游动线 开放式的DIY收纳空间，自由组合 02 / 厨房 · 偷来的闲暇时光 原本阳台纳入室内厨房空间，收纳提升2倍 是吧台，是备餐台，更是餐厅 三角橱柜，容纳下三人的厨房 03 / 卧室 · 错落有致的氛围营造 设置两级步梯，与飘窗持平，增大实用面积 利落空间的减法，收纳功能增强 01 / Living room · Enjoy the security of being wrapped Half-height low wall entrance with rounded corners A large migratory line is formed Open DIY storage space, free combination 02 / Kitchen · Stolen leisure time The original balcony was incorporated into the indoor kitchen space, and the storage was doubled It's a bar, it's a food prep counter, it's a restaurant Triangular cabinets to accommodate a kitchen for three people 03 / Bedroom · Scattered atmosphere creation Set up two steps, level with the bay window, to increase the usable area Subtraction of neat space, enhanced storage function

PROJECT ADDRESS 广州海珠区  / 31㎡ 主案设计师：陈智超 房屋类型：旧房改造 PROJECT ADDRESS Guangzhou Haizhu District / 31㎡ Main designer: Chen Zhichao Type of house: renovation of old house 在合适的土壤种下种子，开出繁花； 在有限的空间里，通过设计化解弊端，回应居住需求， 像是被赋予新的生命，绽放出理想的生活。 Plant seeds in suitable soil and bloom; In a limited space, solve the shortcomings through design and respond to the needs of living, It is like being given a new life and blooming into an ideal life. 本案主题“Blooming花漾”一边启发于业主热衷的“花”元素，一边立足于打造从容舒展的空间秩序。31㎡的一房一厅一卫，别致又温馨，融入半弧形玄关、复古小花砖拼接木地板、自由开放的DIY收纳柜，三角形橱柜、错落的步梯......元素虽多却不显冗杂，让每一个空间都被填充出独特的气韵，为屋主提供了一种包容、安全和亲密的居住感。 The theme of this case, "Blooming", inspires the "flower" element that the owner is passionate about, and on the other hand, it is based on creating a calm and stretching spatial order. 31㎡ one-bedroom, one-living room and one bathroom, chic and warm, integrated into the semi-arc entrance, retro small flower brick spliced wooden floor, free and open DIY storage cabinet, triangular cabinet, staggered steps... Although the elements are numerous but not redundant, each space is filled with a unique charm, providing homeowners with an inclusive, safe and intimate sense of living.

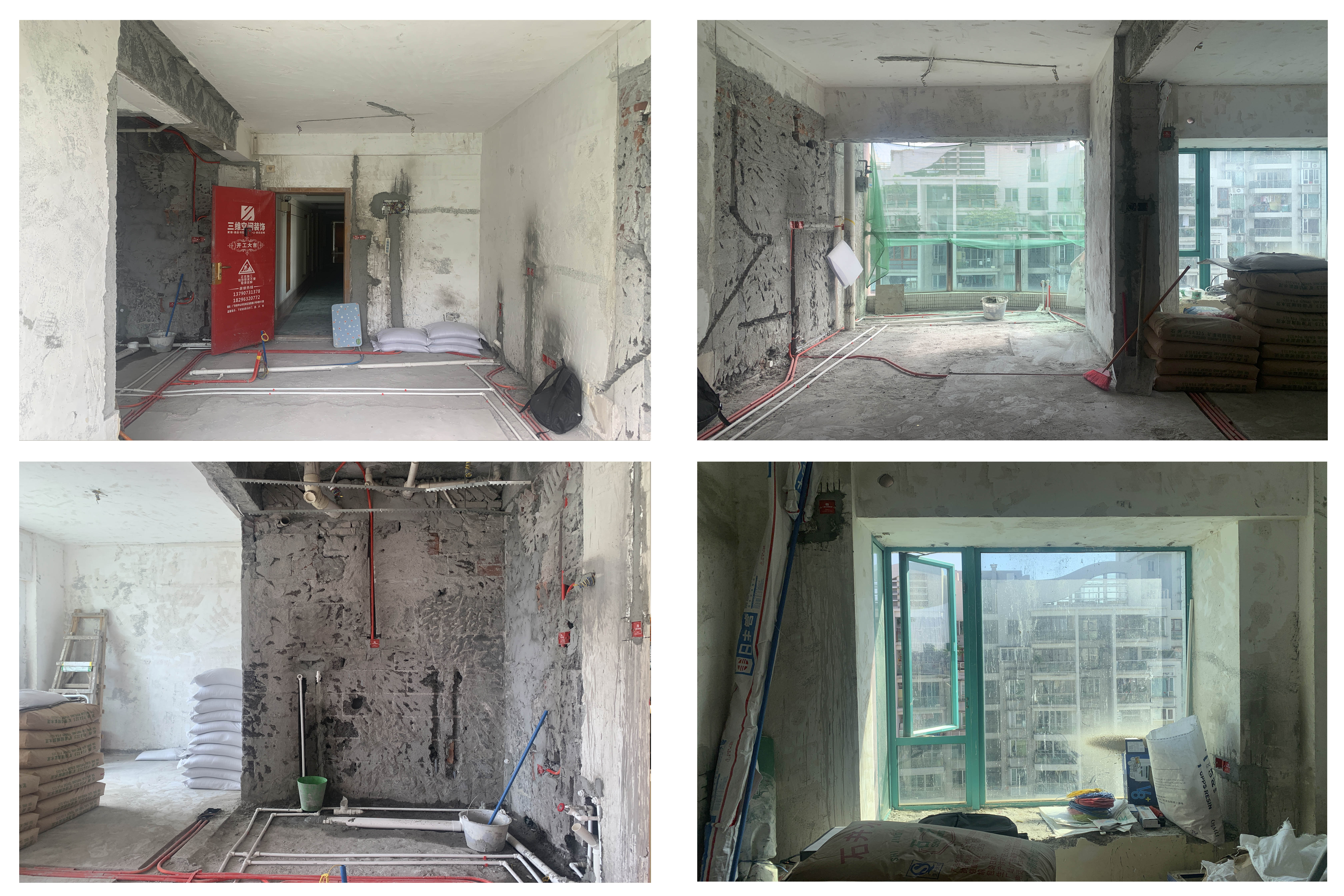

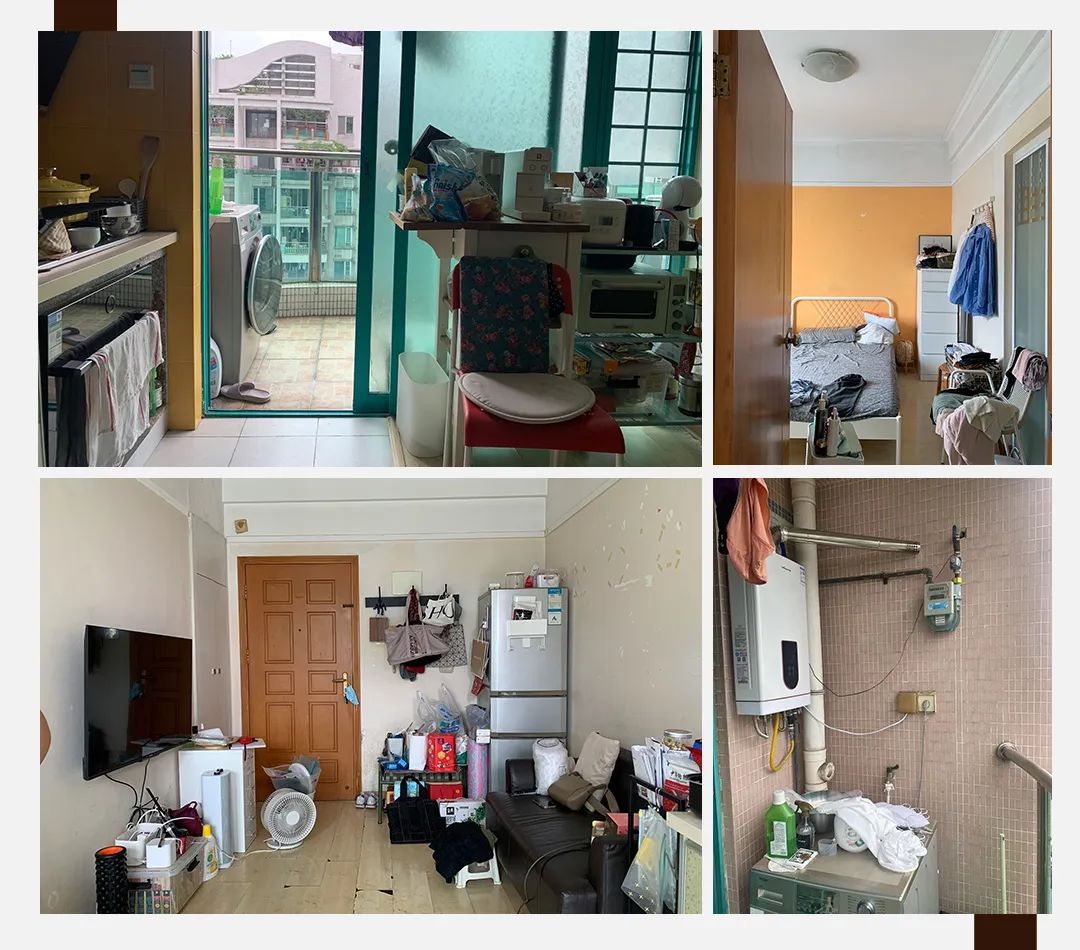

初次与这套房子“面谈”，我们梳理本案的三大空间弊端： 玄关功能缺失，入户门位置尴尬，从门外电梯厅直接窥探到屋内的客厅； 整屋收纳功能欠佳，尤其厨房操作台面有限，导致餐具电器摆放杂乱； 布局保守，动线混乱，仅有的卫生间设置在主卧，通风差，来访客人使用不便。  The first "interview" with this house, we sorted out the three major spatial drawbacks of this case: The entrance function is missing, the entrance door is in an awkward position, and the elevator hall outside the door is directly spied into the living room of the house; The storage function of the whole house is not good, especially the kitchen  countertop is limited, resulting in the messy placement of tableware and  appliances;  The layout is conservative, the circulation is chaotic, the only bathroom is set in  the master bedroom, the ventilation is poor, and it is inconvenient for visitors to  use. 广州海珠区丨1室1厅1卫丨31㎡  Guangzhou Haizhu District丨1 bedroom 1 living room 1 bathroom 丨31㎡

再与屋主一番交流后，了解到他们的需求与喜好： 1）入户玄关处满足日常挂衣挂伞，鞋子收纳等功能 2）渴望拥有一个小岛台，餐桌能成为工作台，烘焙的操作台 3）客厅的氛围能满足沉浸式看书、练瑜伽的需求 4）好好利用阳台和卧室飘窗的自然光线 5）洗手间通风性能差，空间鸡肋，倾向三分离设计 6）全屋收纳不足，想要在卧室增加多点收纳功能 7）风格不限，比较喜欢碎花元素和柔和色彩 ...... After some more communication with the homeowner, I learned about their needs and preferences: 1) The entrance to the house meets the functions of daily hanging clothes hanging umbrella, shoe storage and so on 2) Desire to have a small island, the dining table can become a worktop, baking counter 3) The atmosphere of the living room can meet the needs of immersive reading and yoga practice 4) Take advantage of the natural light from the balcony and bedroom bay window 5) Poor ventilation performance of the washroom, chicken ribs in the space, and tendency to three-separation design 6) The whole house storage is insufficient, and I want to add a multi-point storage function in the bedroom 7) The style is not limited, I prefer broken flower elements and soft colors ...... 小户型的布局要满足一个家的所有功能性和舒适性，以及充足的存储空间，首先必须保证空间动线流畅，且利用好现有的采光条件。 因此，本案将“调整动线、存储空间”列为重点。 再根据空间内分化出来的每个功能，视具体现场情况做出调整。 To meet all the functionality and comfort of a home, as well as sufficient storage space, the layout of a small apartment must first ensure the smooth flow of the space and make good use of the existing lighting conditions. Therefore, this case focuses on "adjusting circulation and storage space". According to each function differentiated in the space, it will be adjusted according to the specific site situation. #原始平面图▼

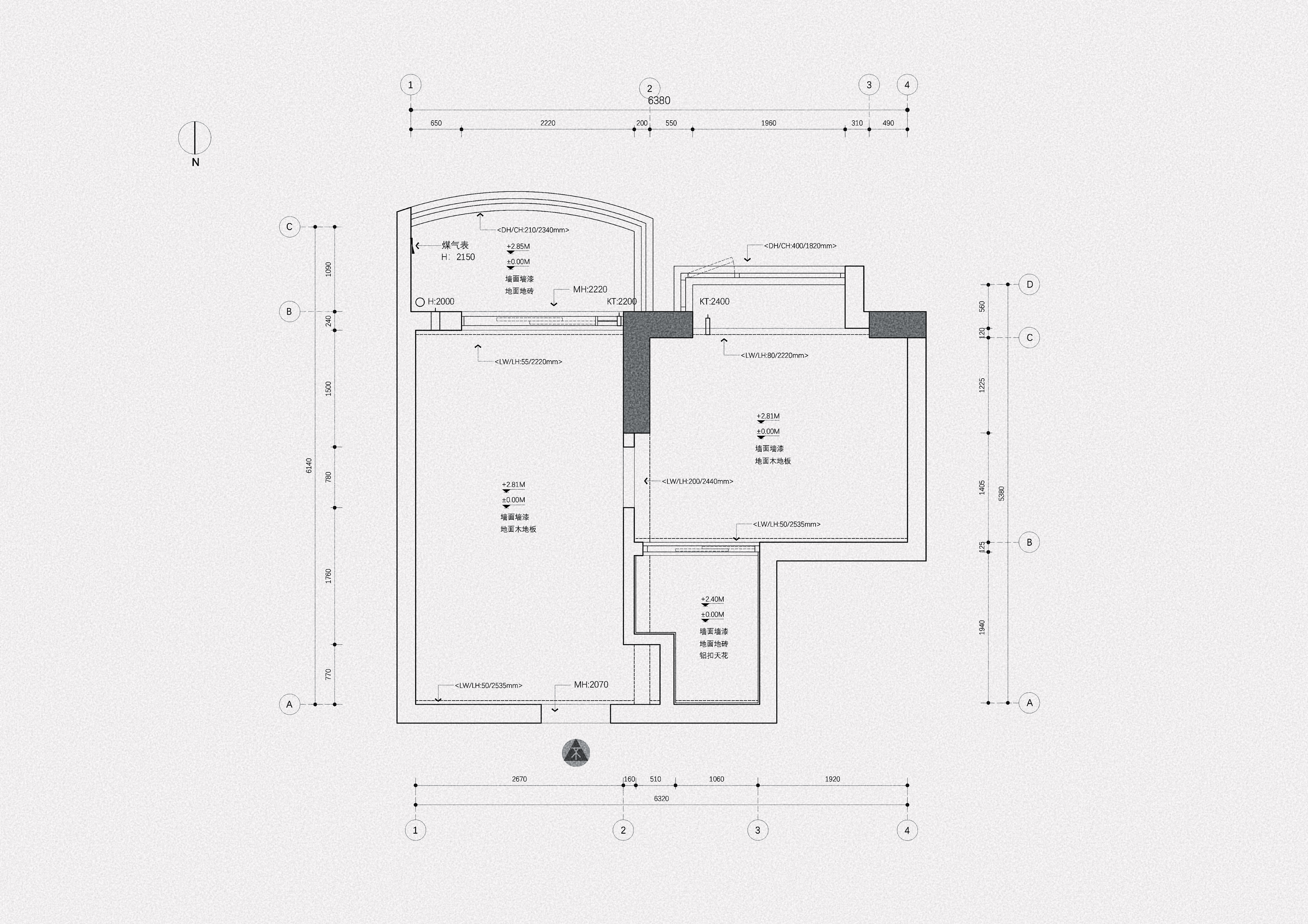

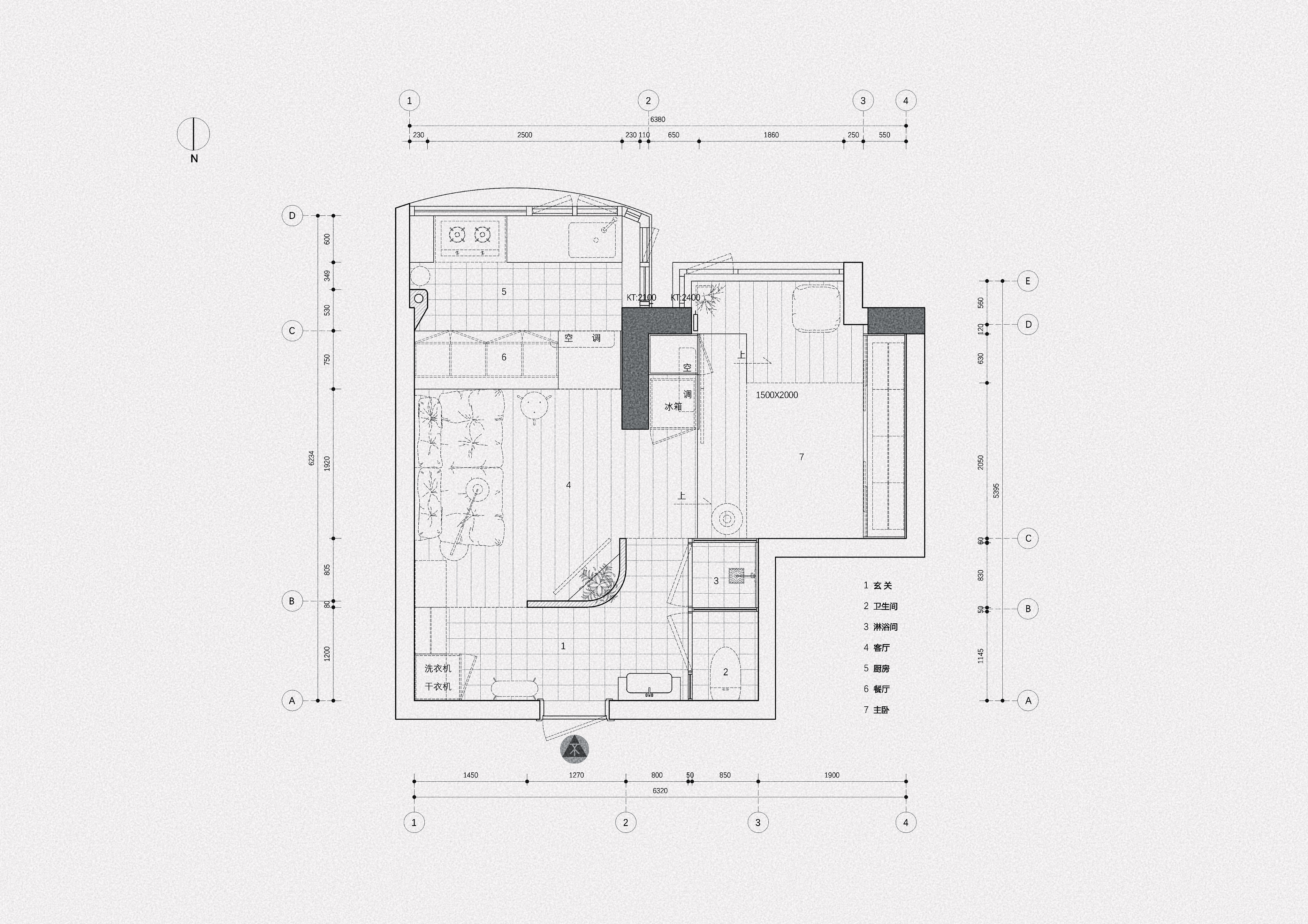

#改造后平面图▼

#三维建模图▼

· 解决方案 · 造 · 在客厅设计一个半弧形玄关，解决开门见厅问题，同时营造整屋的引导式动线 扩 · 将原先利用率低的阳台摒弃，置换成更敞亮的厨房，扩充客餐厨的实用面积 改 · 将主卧独卫整改成三分离公卫，设计步梯持平飘窗位置，腾出更多空间增加收纳 · Solution · Manufacture · Design a semi-arc-shaped entrance in the living room to solve the problem of opening the door to the hall, and at the same time create a guided circulation line for the whole house Expansion · The previously underutilized balcony was replaced with a brighter kitchen to expand the usable area of the guest kitchen Change · The master bedroom was transformed into three separate public bathrooms, and the steps were designed to be flat with bay windows to free up more space for storage #打拆现场▼

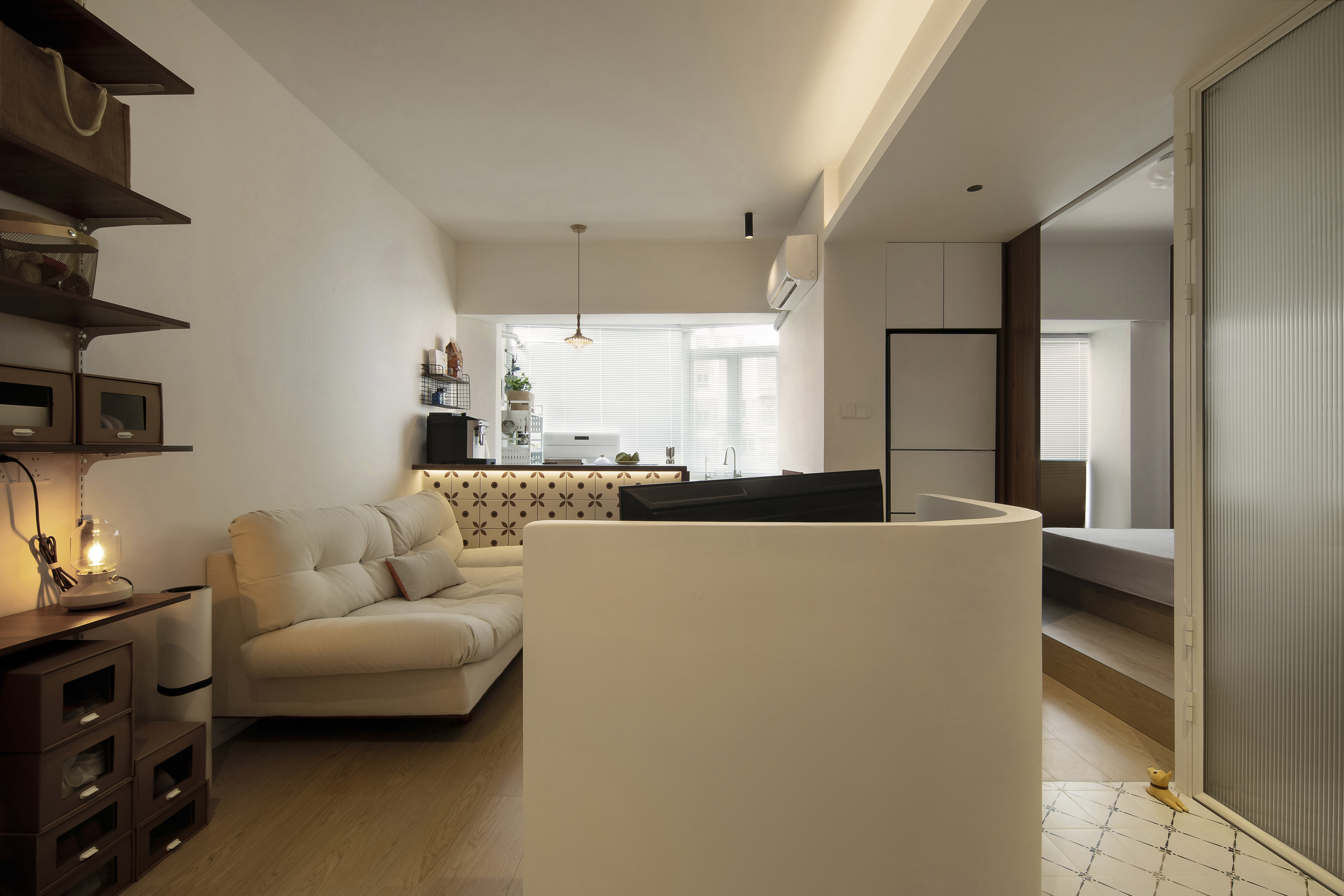

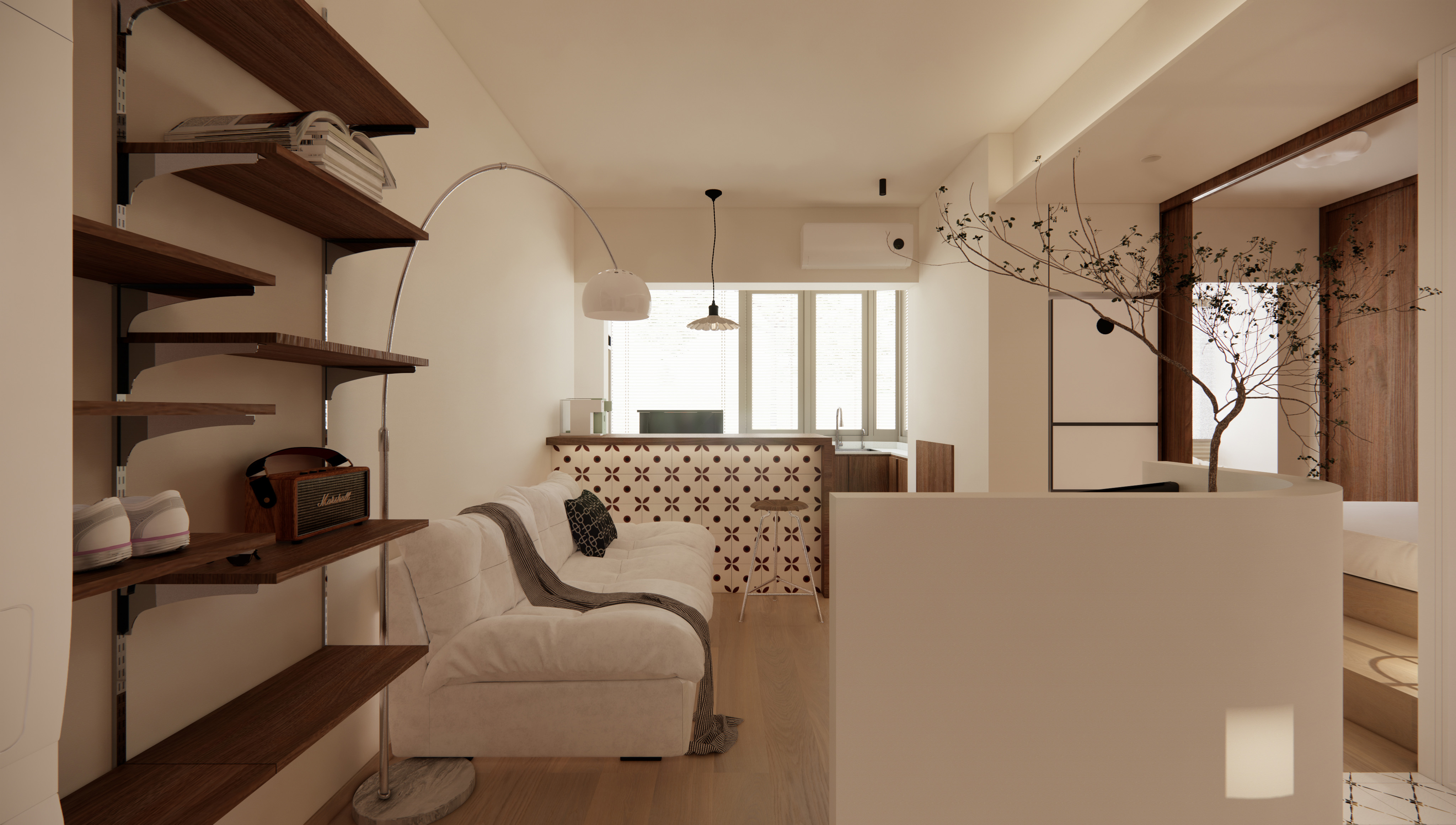

/ 客厅 享受被包裹的安全感 / Living room Enjoy the security of being wrapped · 圆润边角的半高矮墙玄关 · 形成一个大的洄游动线 · 开放式的DIY收纳空间，自由组合 · Half-height low wall entrance with rounded corners · A large migratory line is formed · Open DIY storage space, free combination 花瓣状的“半高矮墙玄关”为清雅的空间带来一缕悦动。考虑到屋主家的大门正对楼层的公共通道，所以我们在客厅里安置了一个既能保护客厅的私密性，不让家中的活动暴露给过路人看，带来屋主满满的安全感；又不会破坏客厅整体性，避免一进门就被整个墙面挡住，显得空间逼仄和影响采光。所以我们巧妙地设计半墙玄关，高度不及墙面一半，没有喧宾夺主之意，又能回归空间通透本质。 The petal-shaped "half-height low wall entrance" brings a ray of joy to the elegant space. Considering that the door of the owner's house is facing the public passage on the floor, we have placed a living room in the living room that can not only protect the privacy of the living room, but also prevent the activities of the home from being exposed to passers-by, bringing the owner a full sense of security; It will not destroy the integrity of the living room, avoid being blocked by the entire wall as soon as you enter the door, and appear to be tight in space and affect lighting. Therefore, we cleverly designed the half-wall entrance, which is less than half the height of the wall, without the intention of dominating the master, and can return to the essence of space transparency. #实景图▼

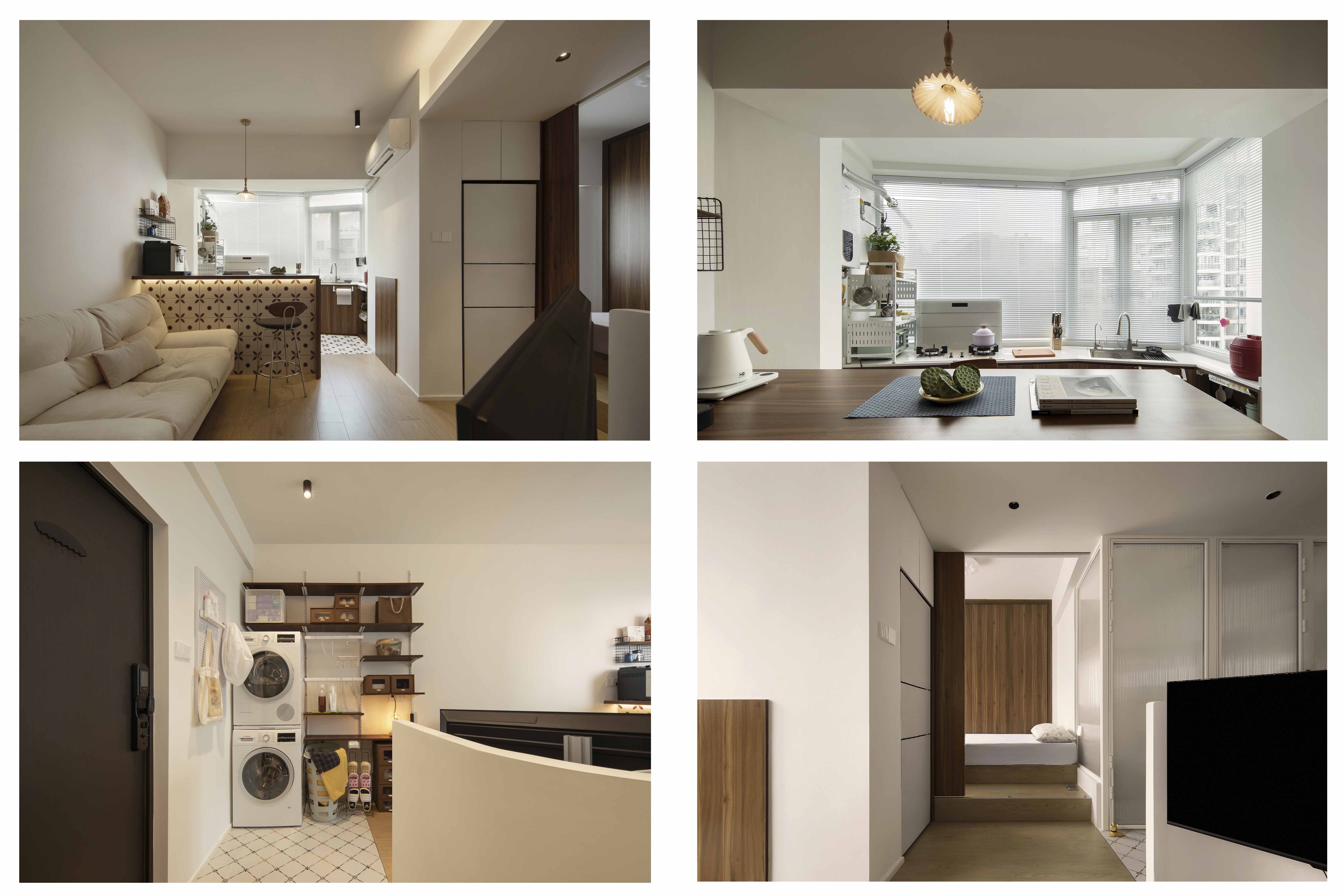

#效果图▼

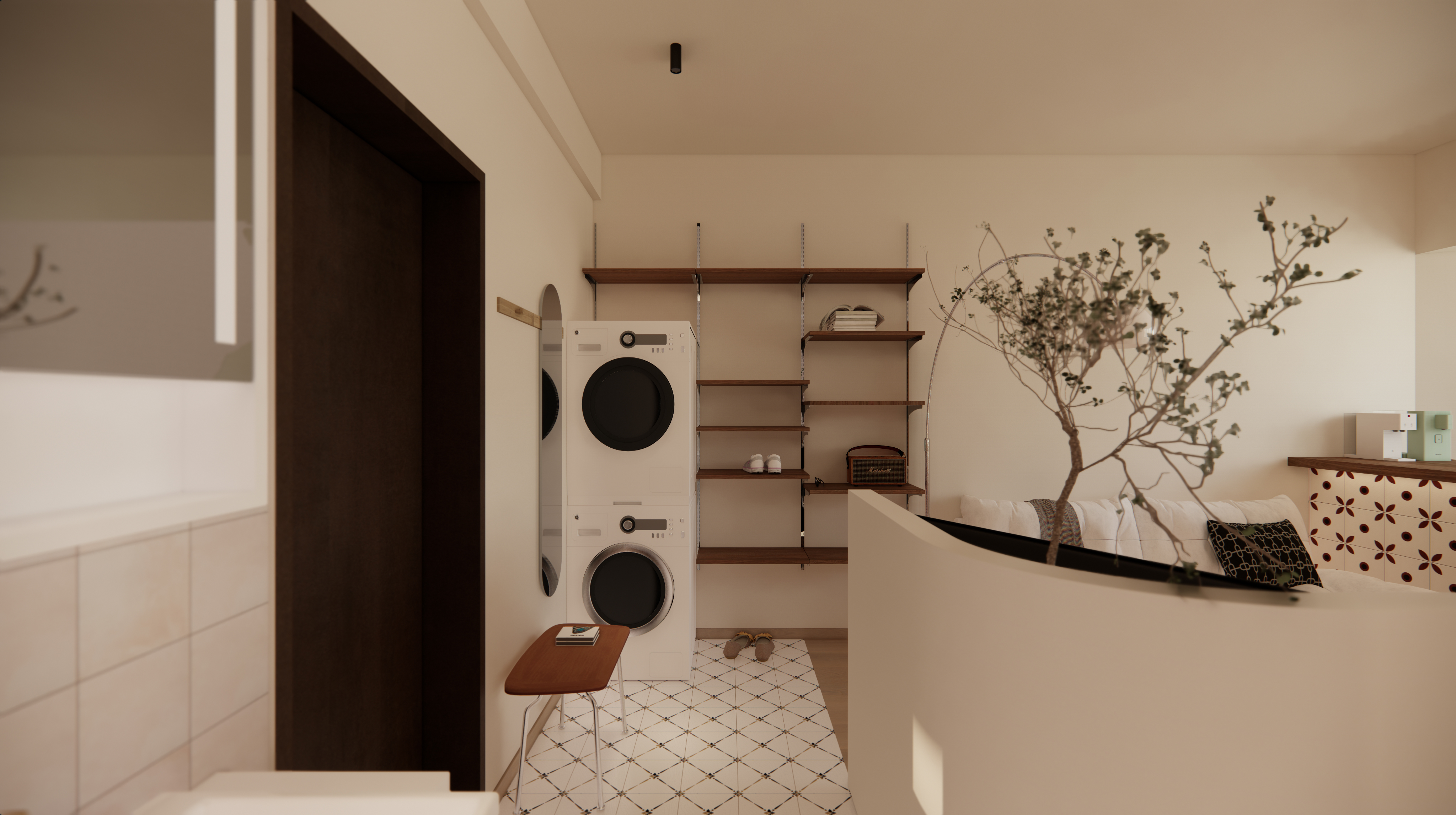

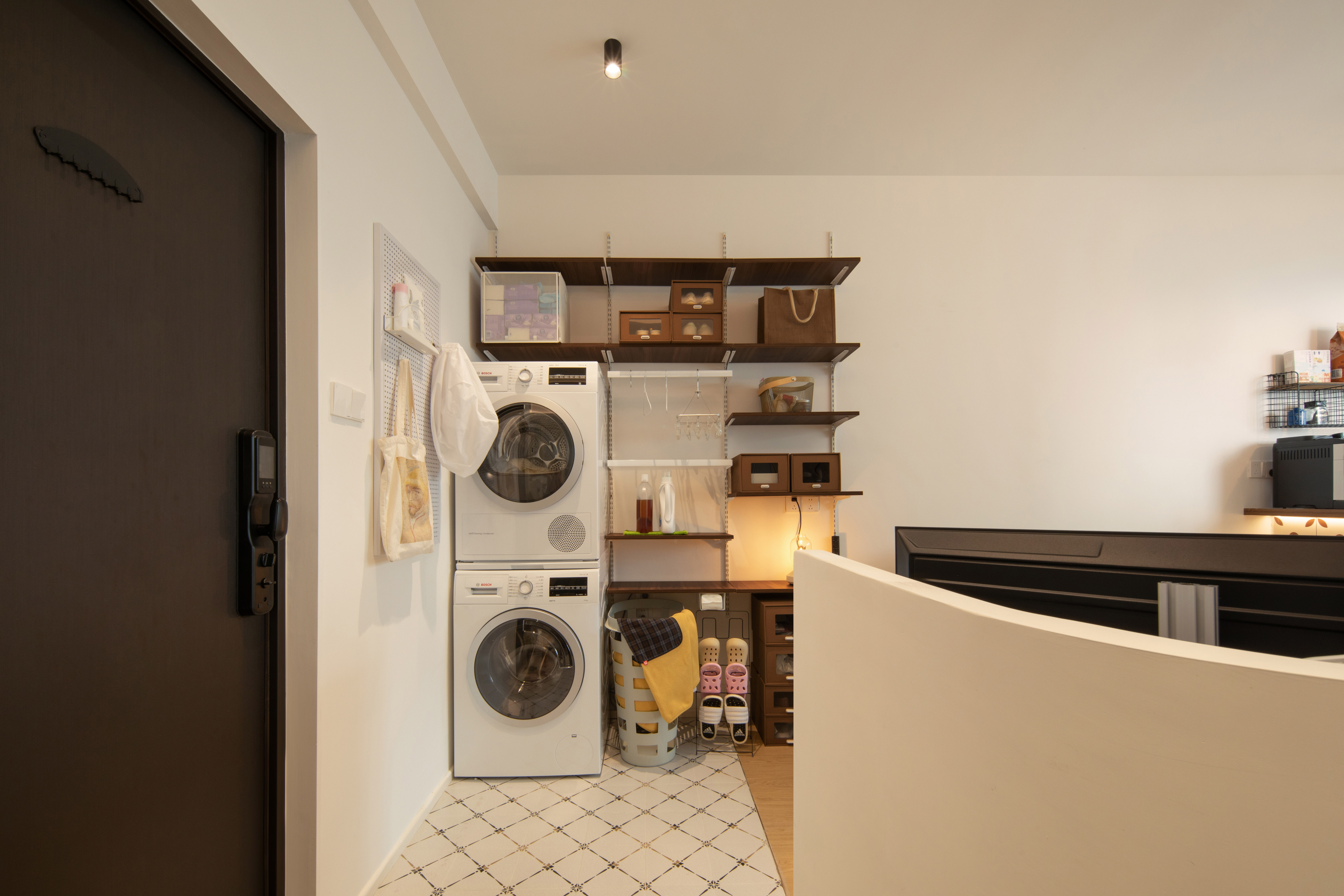

进门左手边是一组DIY的收纳柜。相比较传统的收纳柜体，我们的视线可以直观墙体，让本就预留不多的入户位置能在视觉上得以空间的轻盈感。 On the left-hand side of the entrance door is a set of DIY storage cabinets. Compared with the traditional storage cabinet, our line of sight can be intuitive to the wall, so that the reserved place can visually give the space a sense of lightness. #实景图▼

#效果图▼

DIY收纳柜的自由组合，脱离传统柜体造型的桎梏，可以根据日常需求在柜体做一些调整改动。洗衣机、脏衣篓一同放置此处，方便屋主晚上淋浴后顺手把更换的脏衣服进行洗护。 The free combination of DIY storage cabinets breaks away from the shackles of traditional cabinet shapes, and can make some adjustments and changes in the cabinet according to daily needs. The washing machine and dirty clothes basket are placed here, so that the homeowner can wash the changed dirty clothes after showering at night. #DIY收纳柜▼

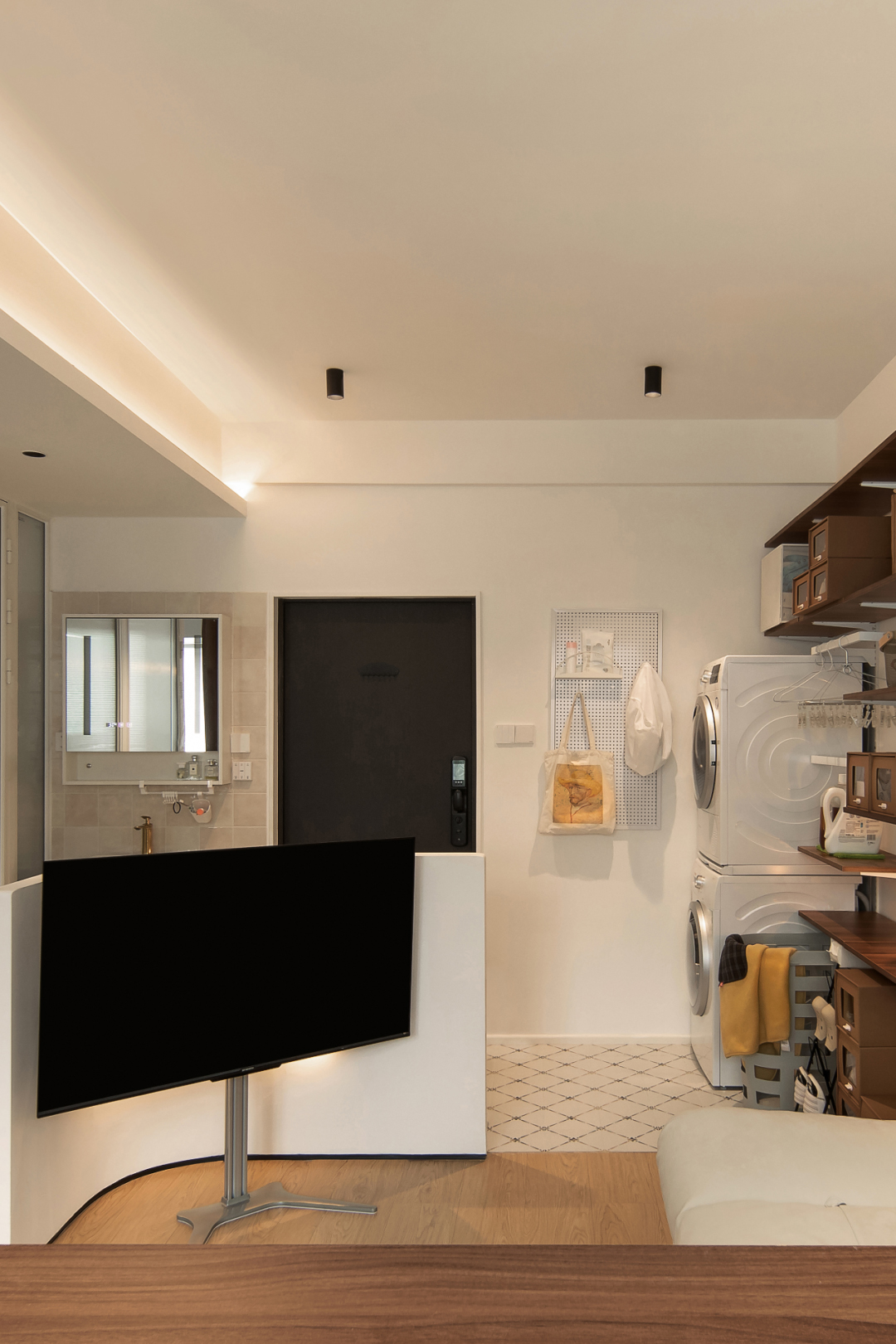

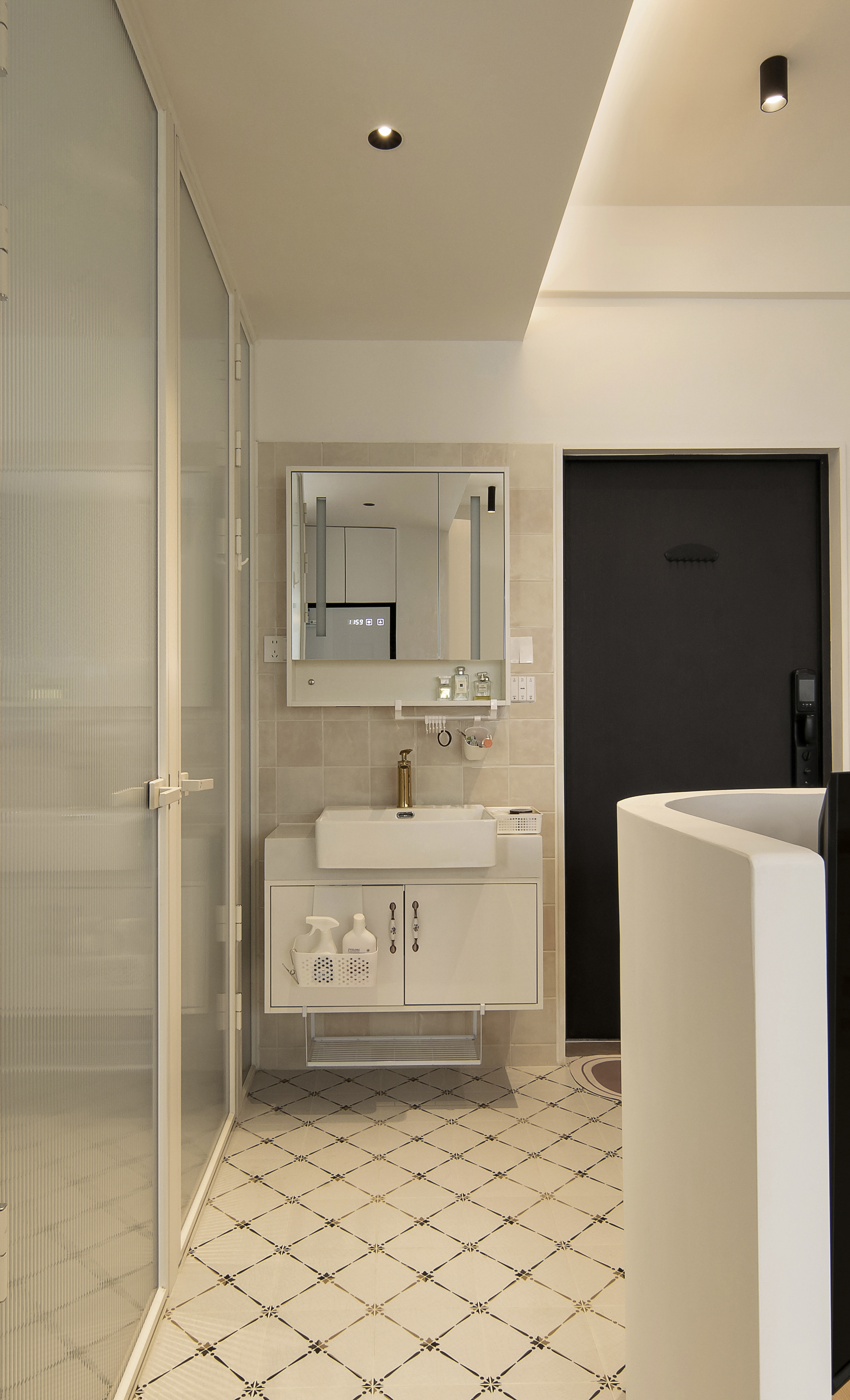

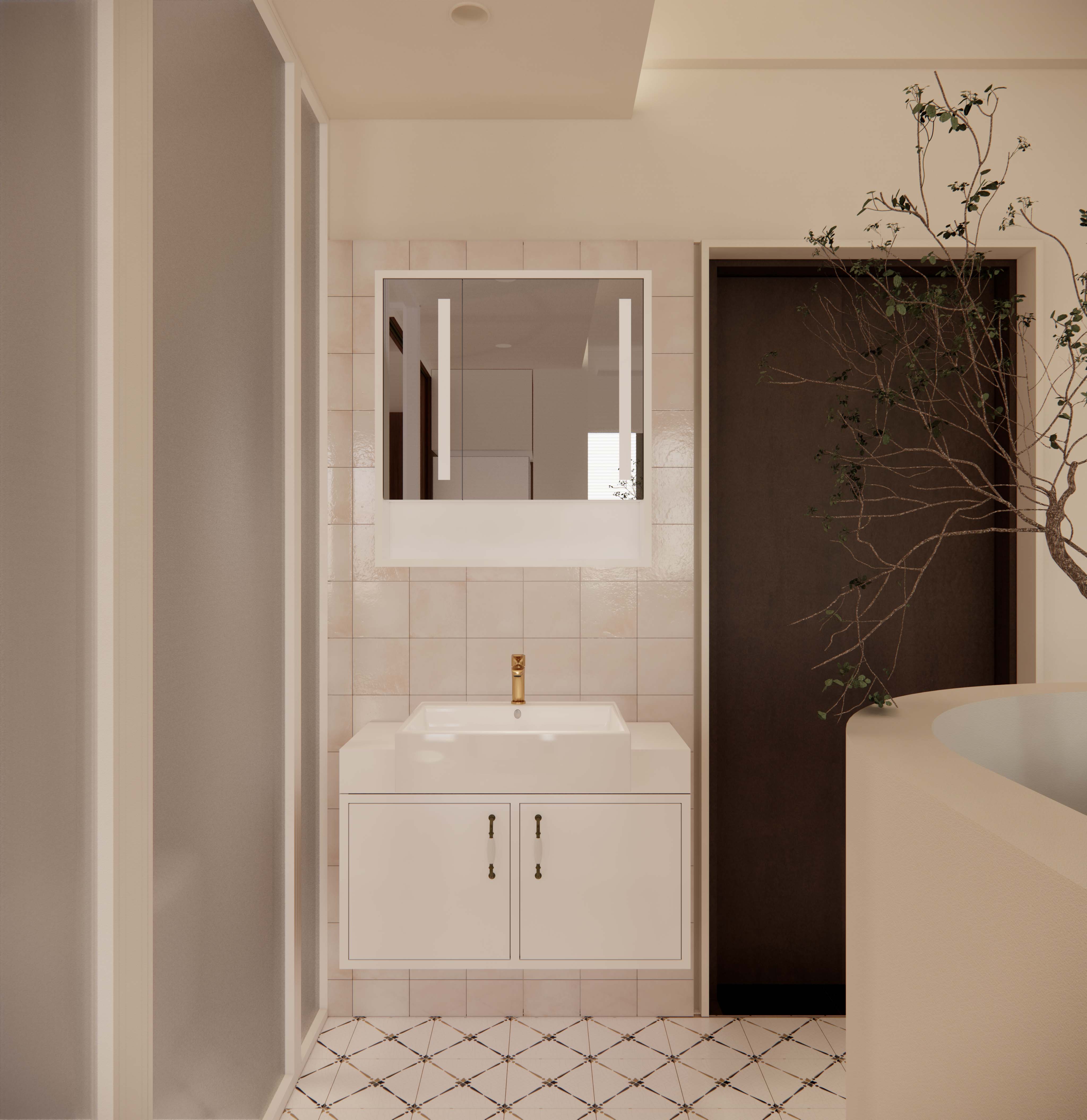

进门右手边是浴室柜。后疫情时代，将“卫生防护”的习惯直接移入家门，我们设计一个进门独立洗漱台，便利屋主每次归家第一时间就能洗手清洁。看似小小的点睛之笔，却给屋主日常生活带来很多便利之处。 On the right hand side of the entrance door is the bathroom cabinet. In the post-epidemic era, the habit of "hygiene protection" is directly moved into the door, and we have designed an independent washstand to facilitate homeowners to wash their hands and clean as soon as they return home. It seems to be a small finishing touch, but it brings a lot of convenience to the daily life of the homeowner.

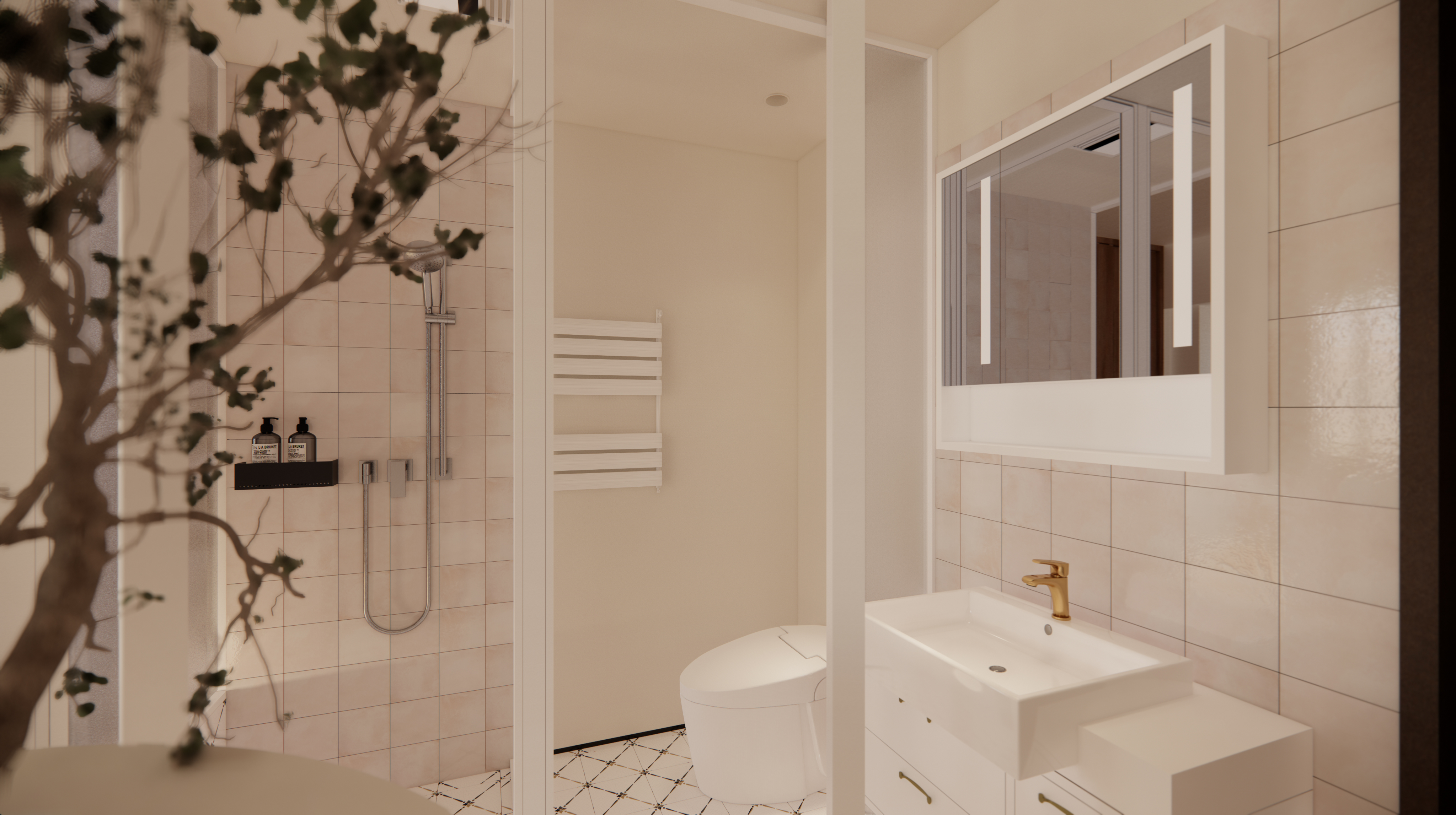

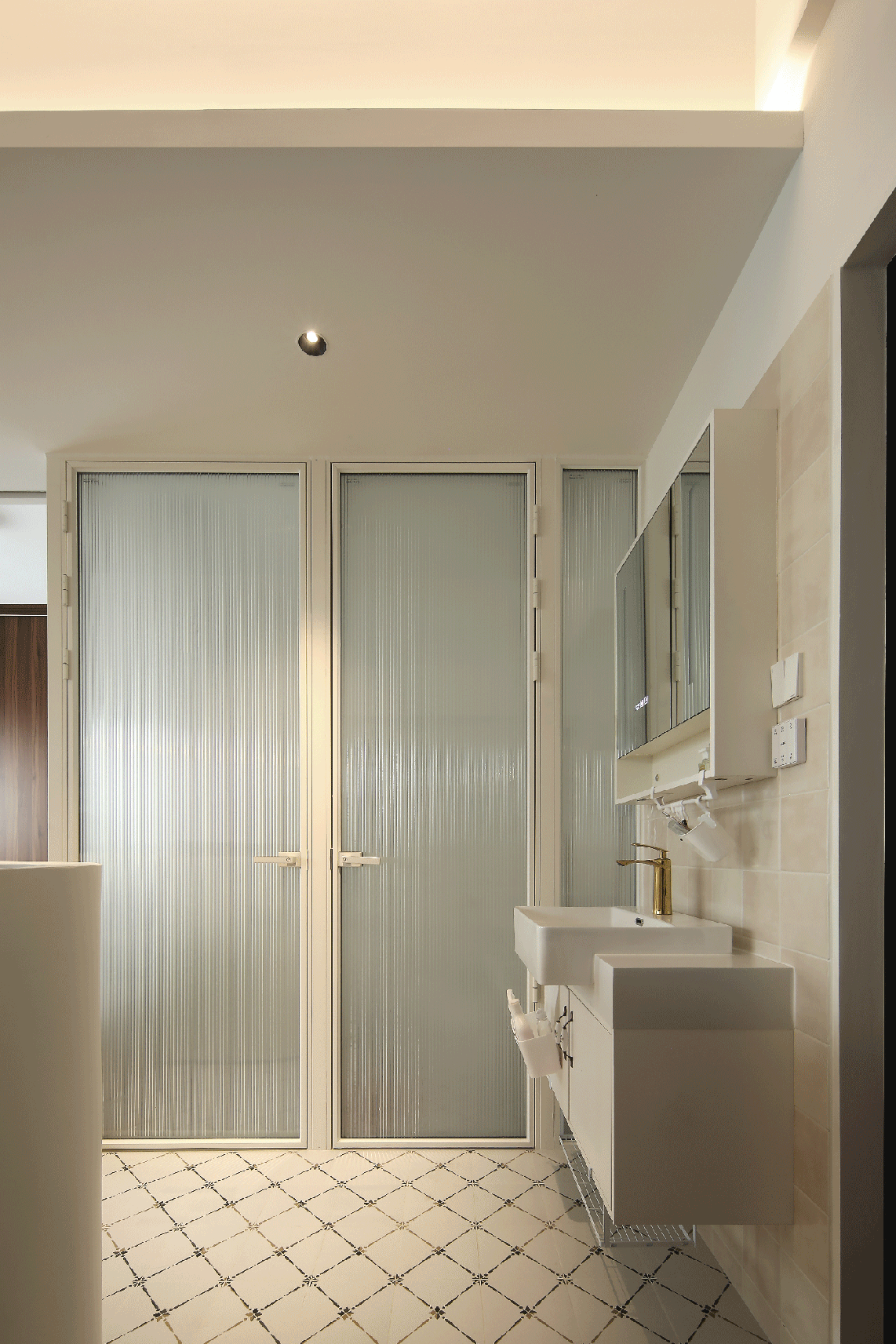

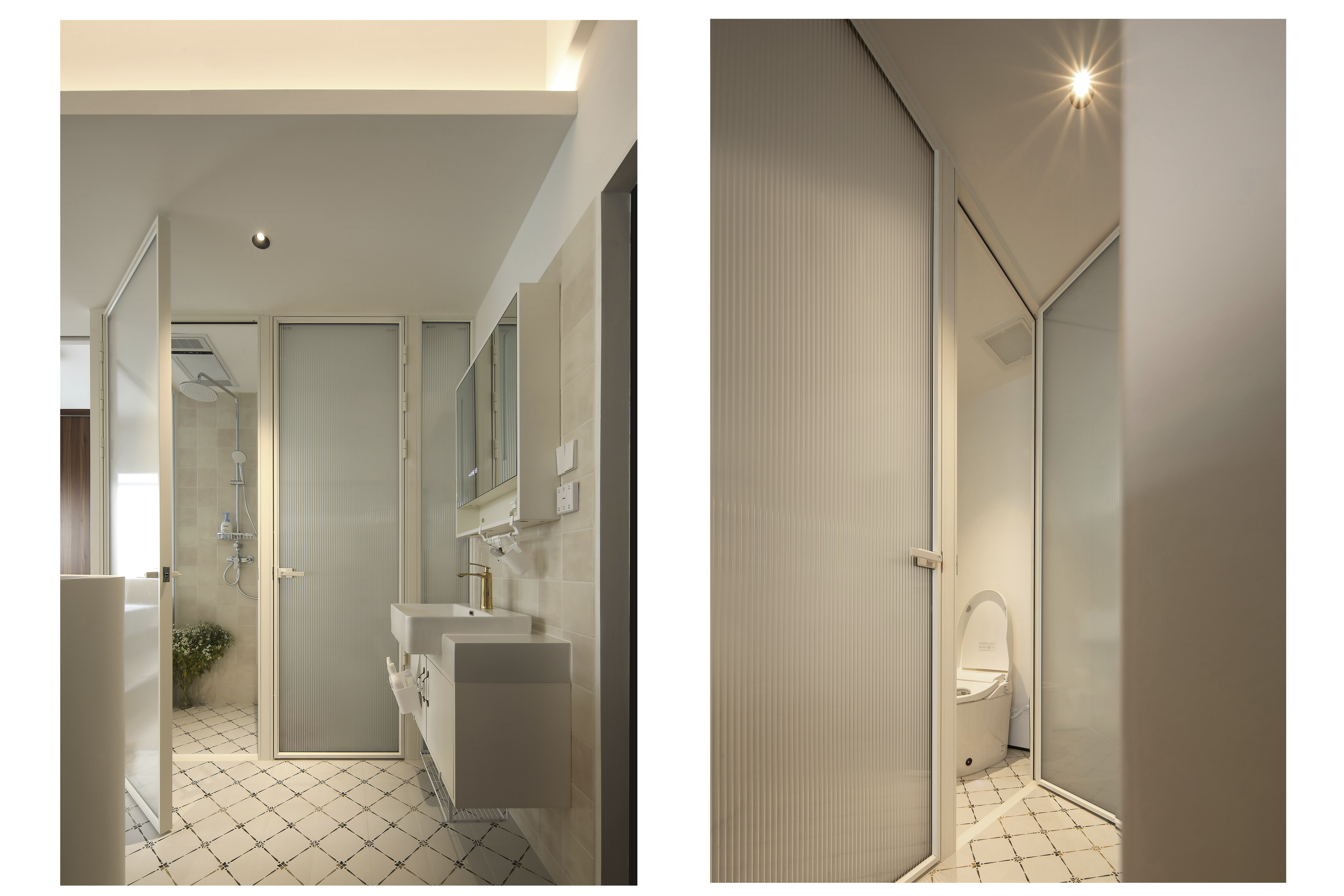

卫生间和淋浴间实现独立三分离，化解原本布局的弊端，即使来访客人借宿，如厕、洗澡、洗漱三个功能区使用做到互不干扰，避免尴尬等待的情况。 The toilet and shower room are separated independently to resolve the drawbacks of the original layout, even if visitors come to spend the night, the three functional areas of toilet, bathing and washing do not interfere with each other and avoid embarrassing waiting. #实景图▼

#效果图▼

以半高矮墙玄关作为客厅与淋浴区的分界点。干净流畅的弧线，营造出被温柔包裹的独立空间。弧形墙体的长度是根据淋浴间的尺寸来把控，为避免木地板因为淋浴区的水渍导致发霉的可能，所以入户和淋浴区平铺小花砖。淋浴区搭配白色系为主的小花砖，让空间视觉更整洁明亮；而客厅木地板则带来了一丝亲和温润。看似同一片区域，却根据功能不同，演绎不一样的空间氛围。 The half-height low wall entrance is used as the dividing point between the living room and the shower area. Clean and smooth arcs, creating an independent space wrapped in gentleness. The length of the curved wall is controlled according to the size of the shower room, in order to avoid the possibility of mold caused by the water stains in the shower area, small tiles are tiled in the home and shower area. The shower area is equipped with small white tiles to make the space more neat and bright; The living room wooden floor brings a touch of affinity and warmth. It seems to be the same area, but according to different functions, it interprets a different spatial atmosphere. #实景图▼

#效果图▼

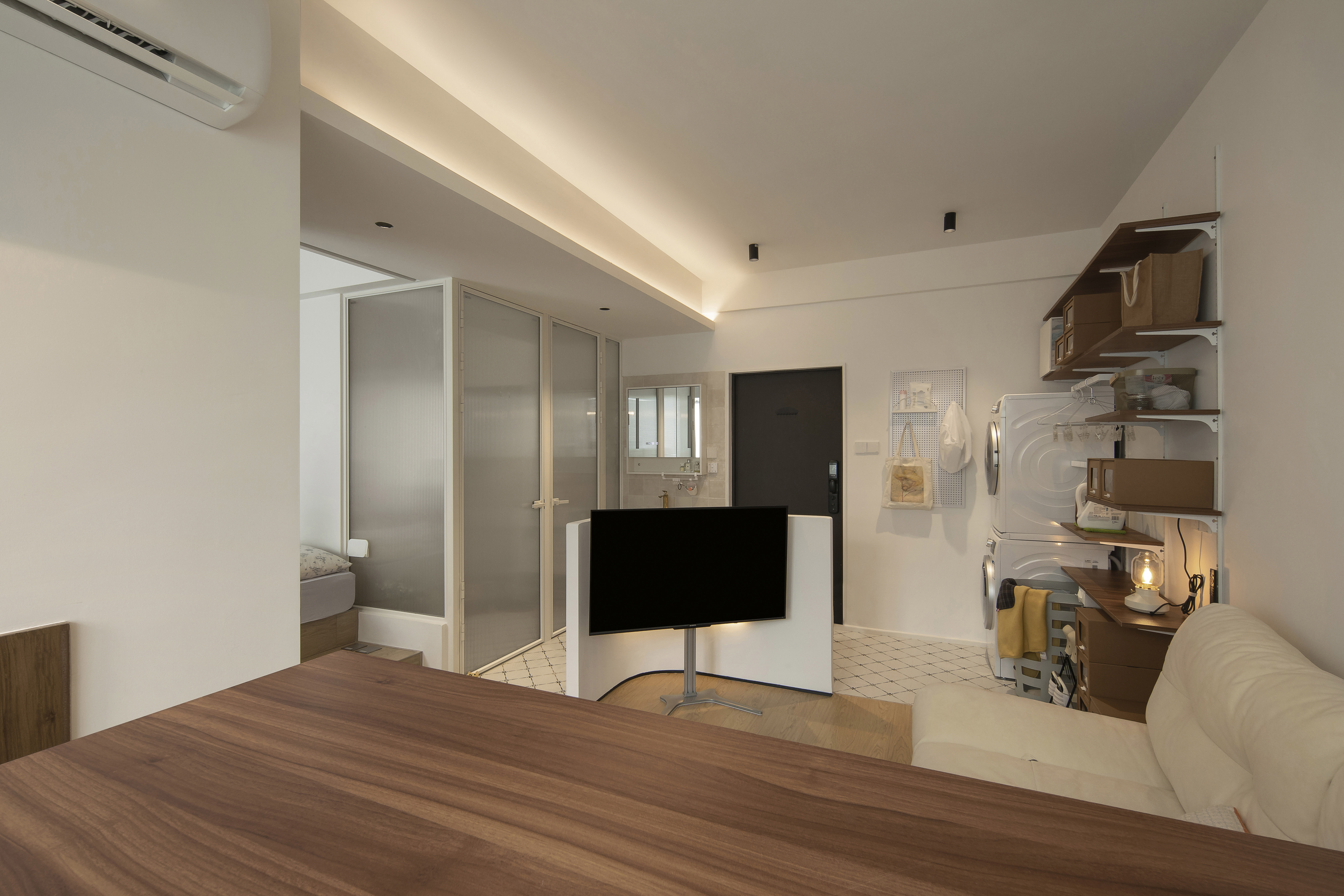

越是简洁的呈现，背后越是花心思。当我们把视线转移到客厅，看似简洁的一角，也隐藏巧妙的设计心得。弧形玄关的墙面背后也区分两段收纳。下层放置电视机WIFI电线设备，上层的层板则主要起到一个挡住下层层板的作用，刚好“隐藏”电视机的设备和电线，更显空间整洁清冽，还能兼顾收纳功能，放置遥控器和花瓶等小摆件。 The more concise the presentation, the more thought is behind it. When we shift our attention to the living room, the seemingly simple corner also hides the ingenious design experience. Behind the wall of the curved entrance, two sections of storage are also distinguished. The lower layer places the TV WIFI wire equipment, and the upper layer mainly plays a role in blocking the lower layer board, just "hiding" the TV equipment and wires, more neat and clean space, but also take into account the storage function, place remote control and vase and other knick-knacks.

原本放在入户位置显得突兀的冰箱则被安排放在承重墙的后面。现处于整个户型每个功能区的中心，从客厅-餐厅-主卧，都能方便在冰箱拿取食物。 The refrigerator, which was originally placed in the entrance position, is arranged behind the load-bearing wall. Now located in the center of each functional area of the entire unit, from the living room-dining room-master bedroom, it is convenient to access food in the refrigerator.

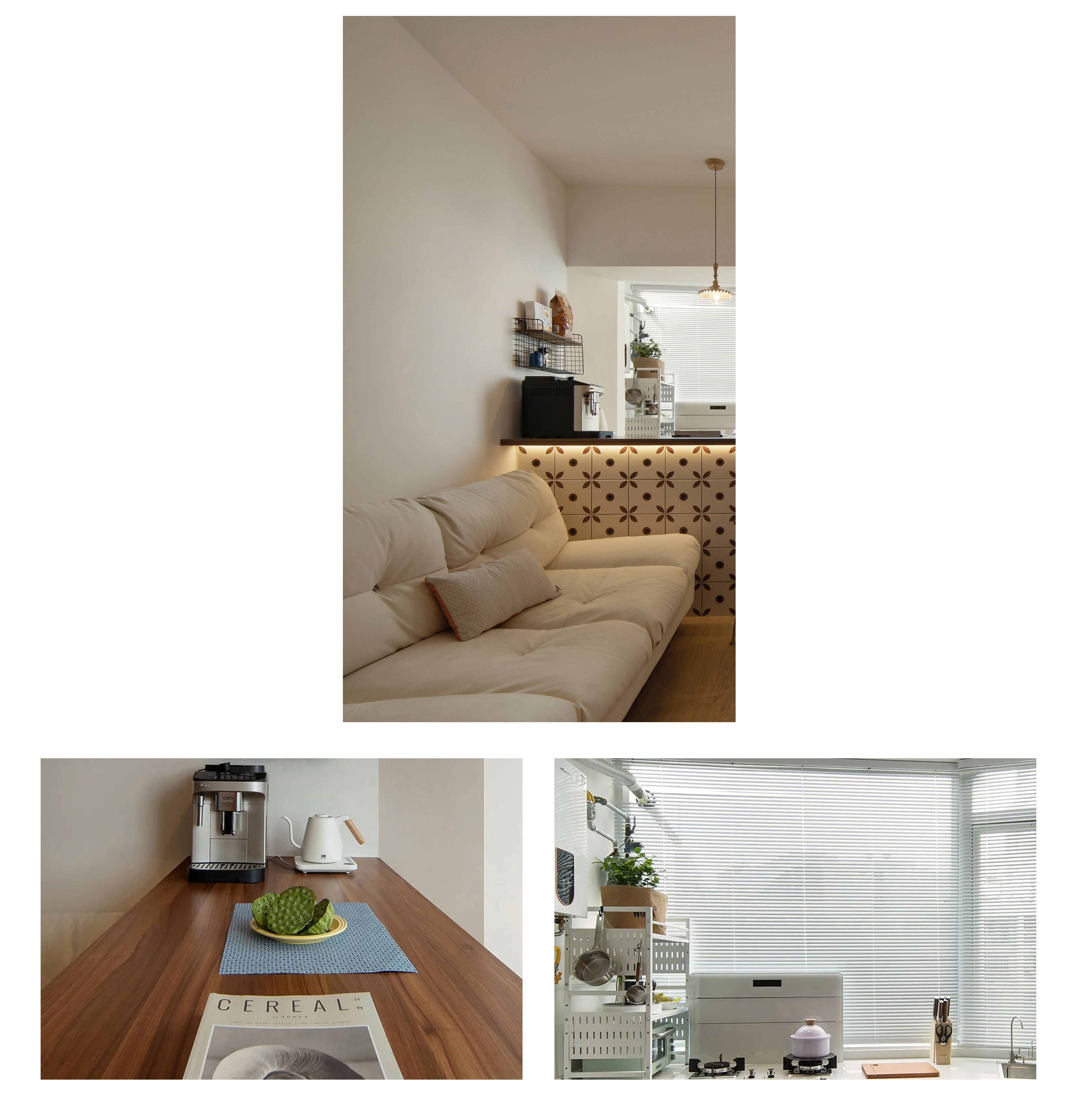

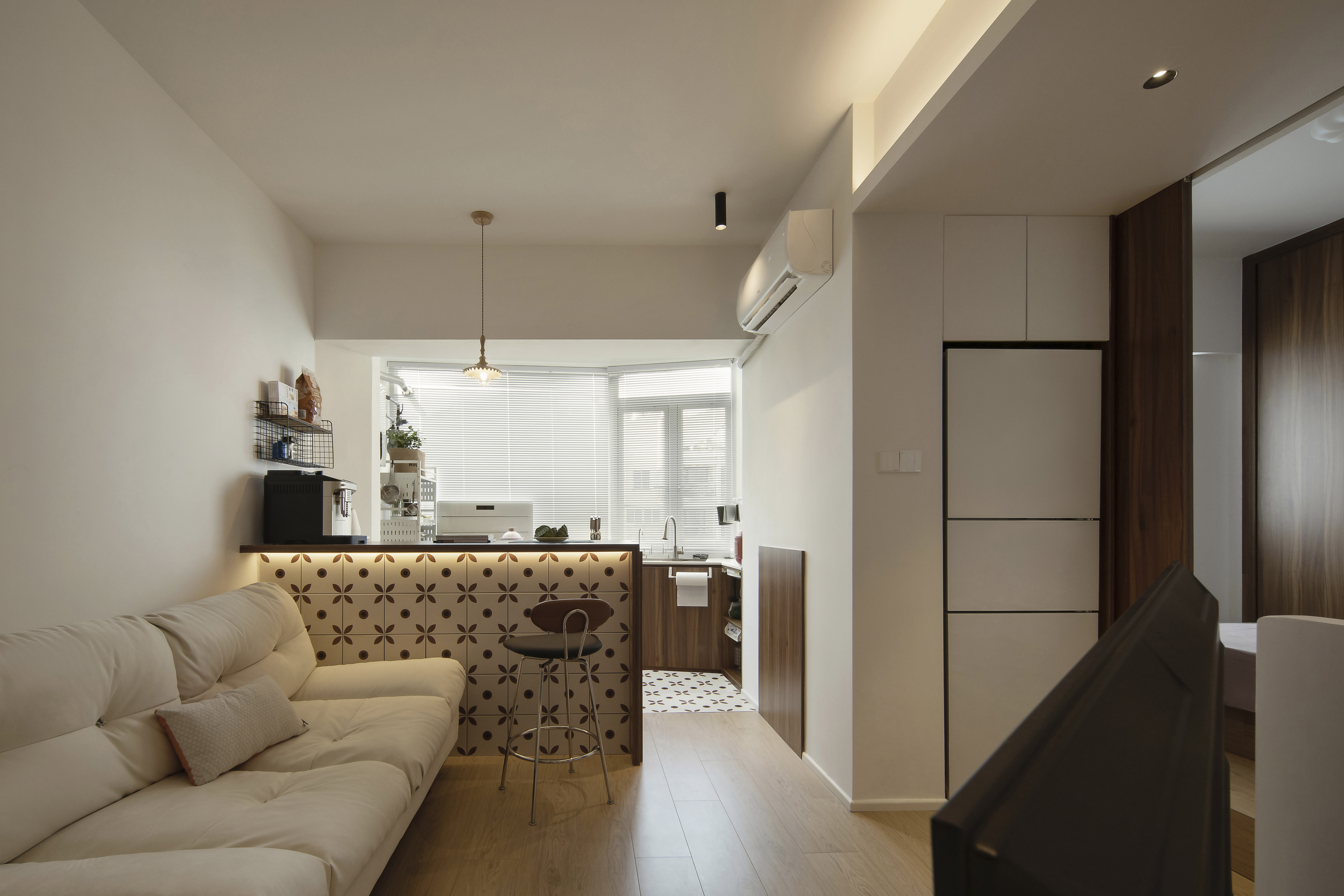

一张低重心的白色皮质沙发摆放在一角，与会呼吸的木地板、热情繁复的碎花砖产生呼应，在自然光线下熏染出微暖光泽，形成一动一静的自洽空间。像是在生机盎然的静止镜头里，我们找寻到与自己相处的舒适方式。如同沙发上放置的一本书、木地板躺着的一张瑜伽垫，无一不给这个场景增添了活跃的能量。 A white leather sofa with a low center of gravity is placed in the corner, echoing the breathing wooden floor and the warm and intricate broken tiles, which are dyed with a slight warm sheen in natural light, forming a self-consistent space that is motionless and quiet. As if in a vibrant still shot, we find a comfortable way to get along with ourselves. Like a book placed on the sofa and a yoga mat lying on the wooden floor, all add active energy to this scene.

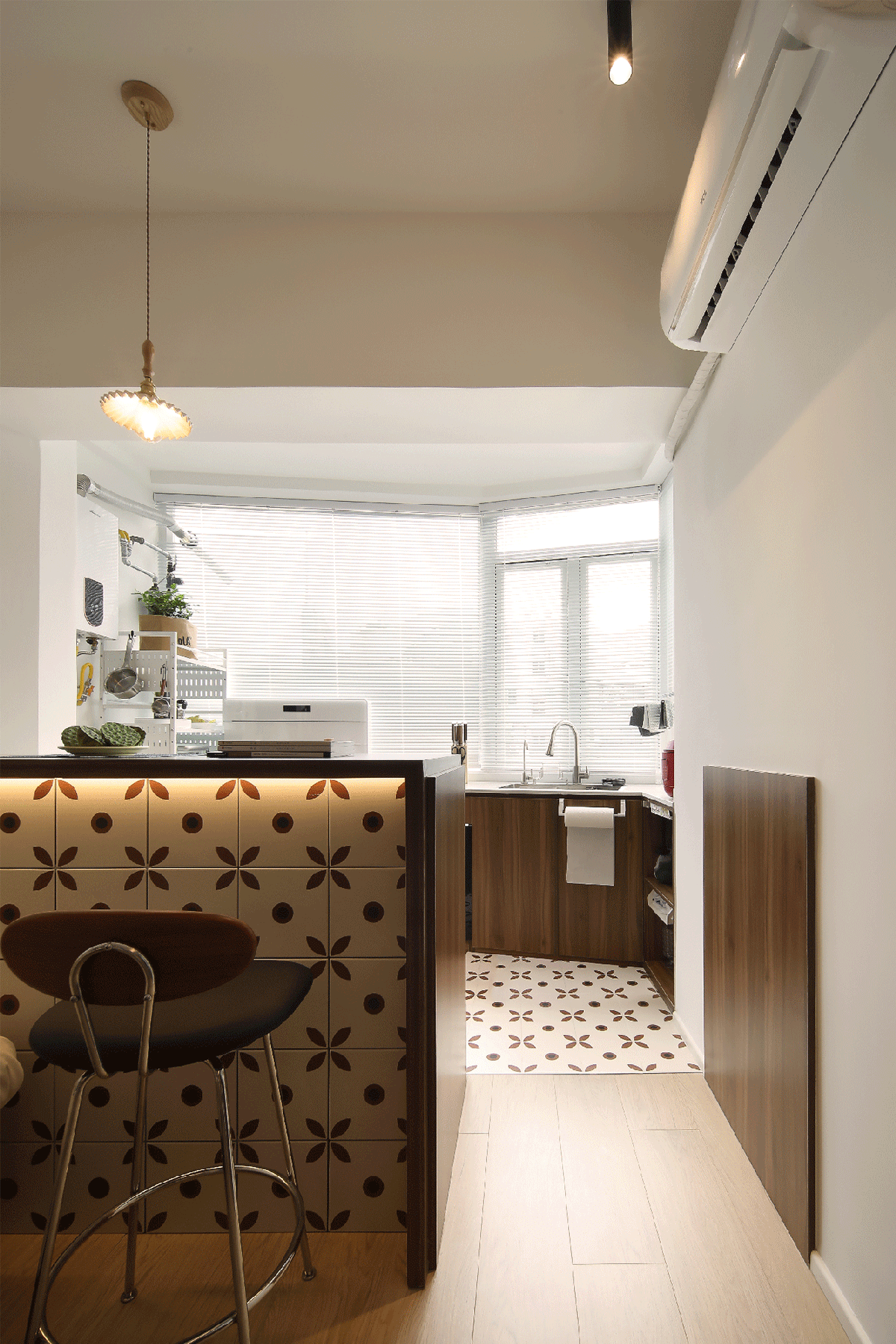

​/ 厨房 偷来的闲暇时光 kitchen Stolen leisure time ·原本阳台纳入室内厨房空间，收纳提升2倍 ·是吧台，是备餐台，更是餐厅 ·三角橱柜，容纳下三人的厨房 The original balcony was incorporated into the indoor kitchen space, and the storage was increased by 2 times It is a bar, a food preparation counter, and a restaurant Triangular cabinets to accommodate a kitchen for three people 食物的芬芳疗愈工作的疲惫，也安抚浮躁的生活节奏。有时候，屋主也喜欢宅家做做饭，自制一杯美式或是豆浆，感受倾泻而入的明亮光线，倾听锅碗瓢盆的交响，沉浸在柴米油盐的温情里。 拥有一个岛台是屋主心中理想厨房的标配。当朋友来访，在这里从烹饪到开餐，四五好友聚在一起，聊天，打打下手...... The aroma of food heals the fatigue of work and also soothes the impetuous pace of life. Sometimes, homeowners also like to cook at home, make a cup of American or soy milk, feel the bright light pouring in, listen to the symphony of pots and pans, and immerse themselves in the warmth of firewood, rice, oil and salt. Having an island is standard in the ideal kitchen for homeowners. When friends visit, from cooking to opening a meal, four or five friends get together, chat, fight... #实景图▼

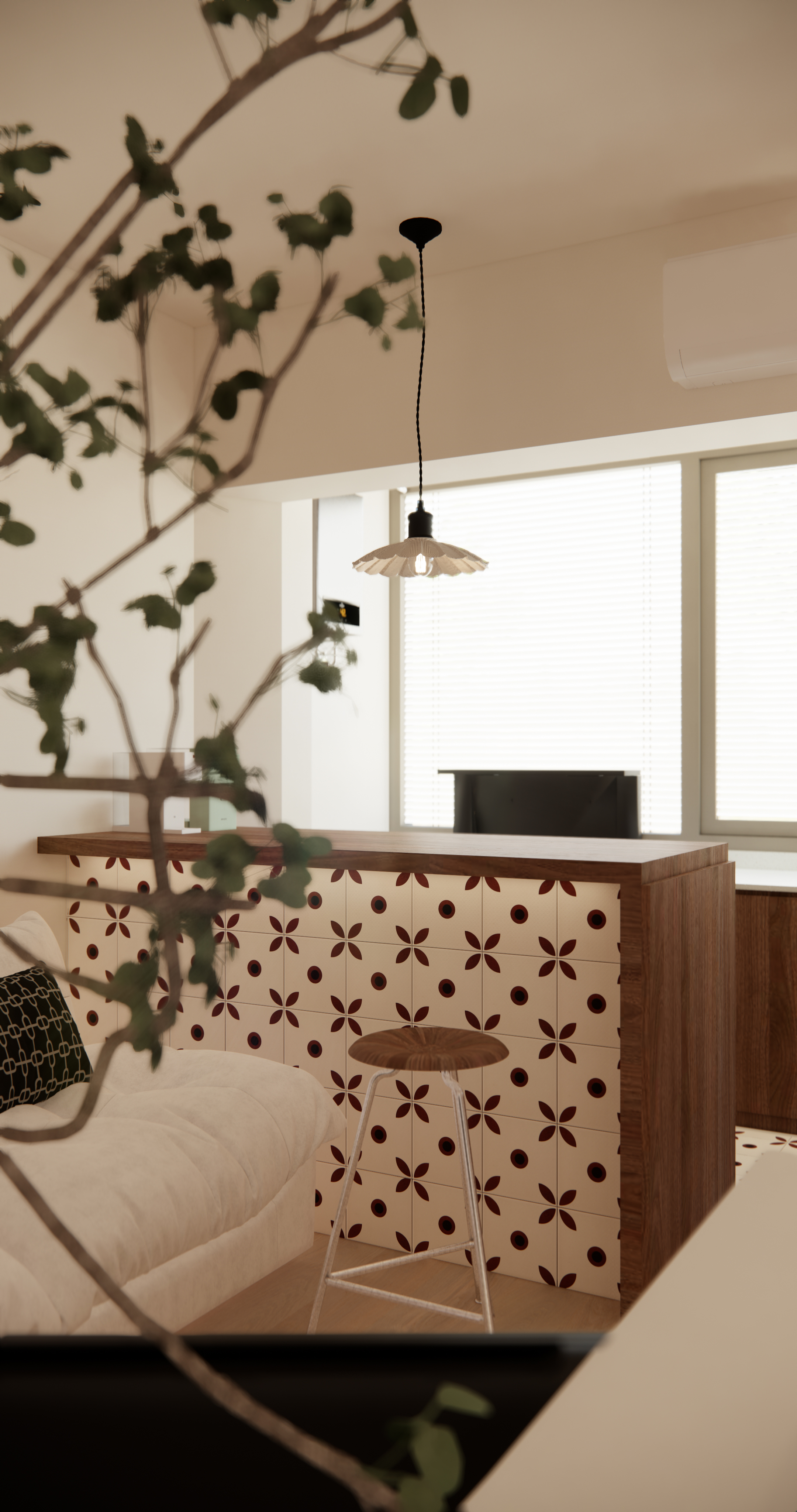

#效果图▼

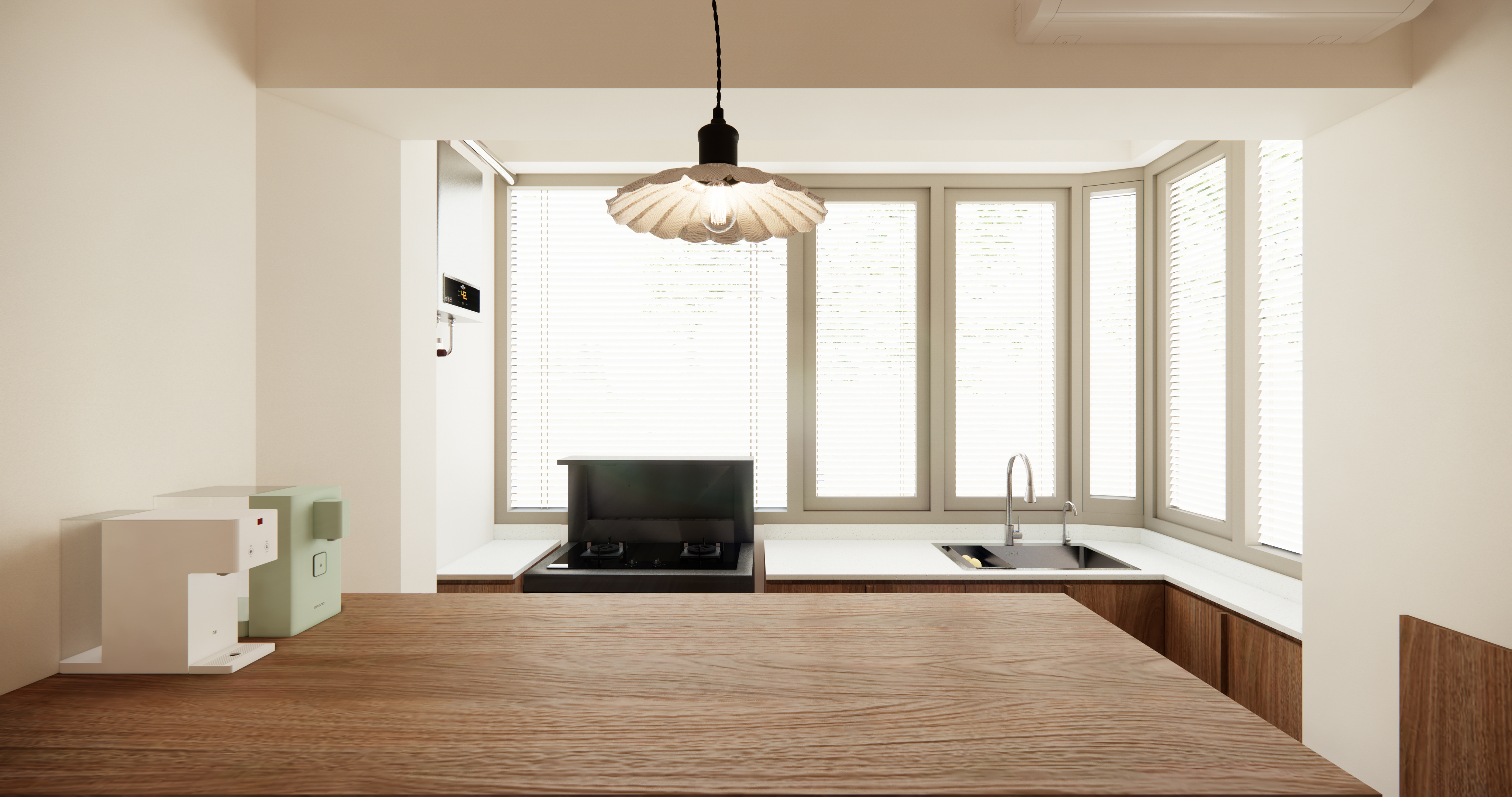

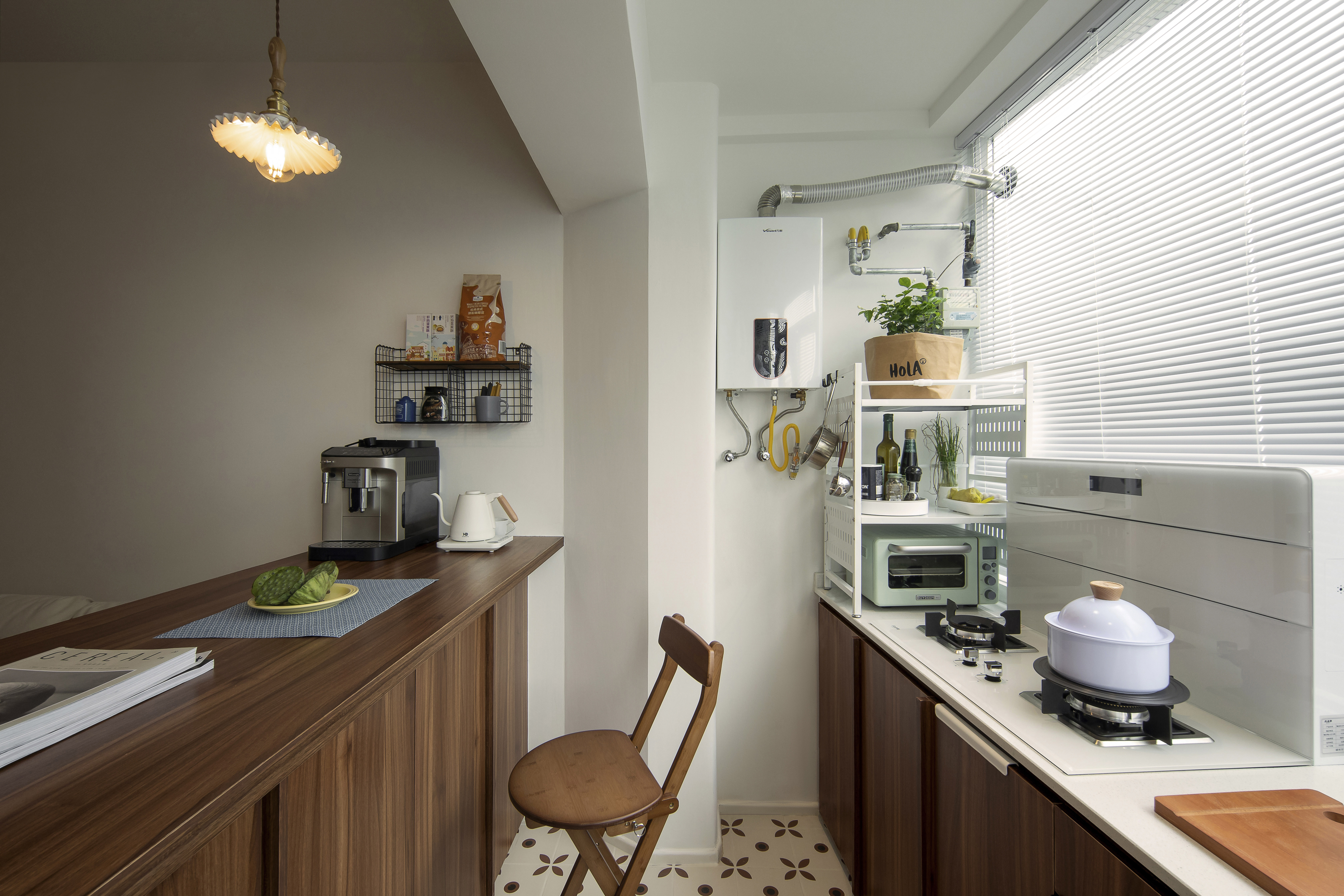

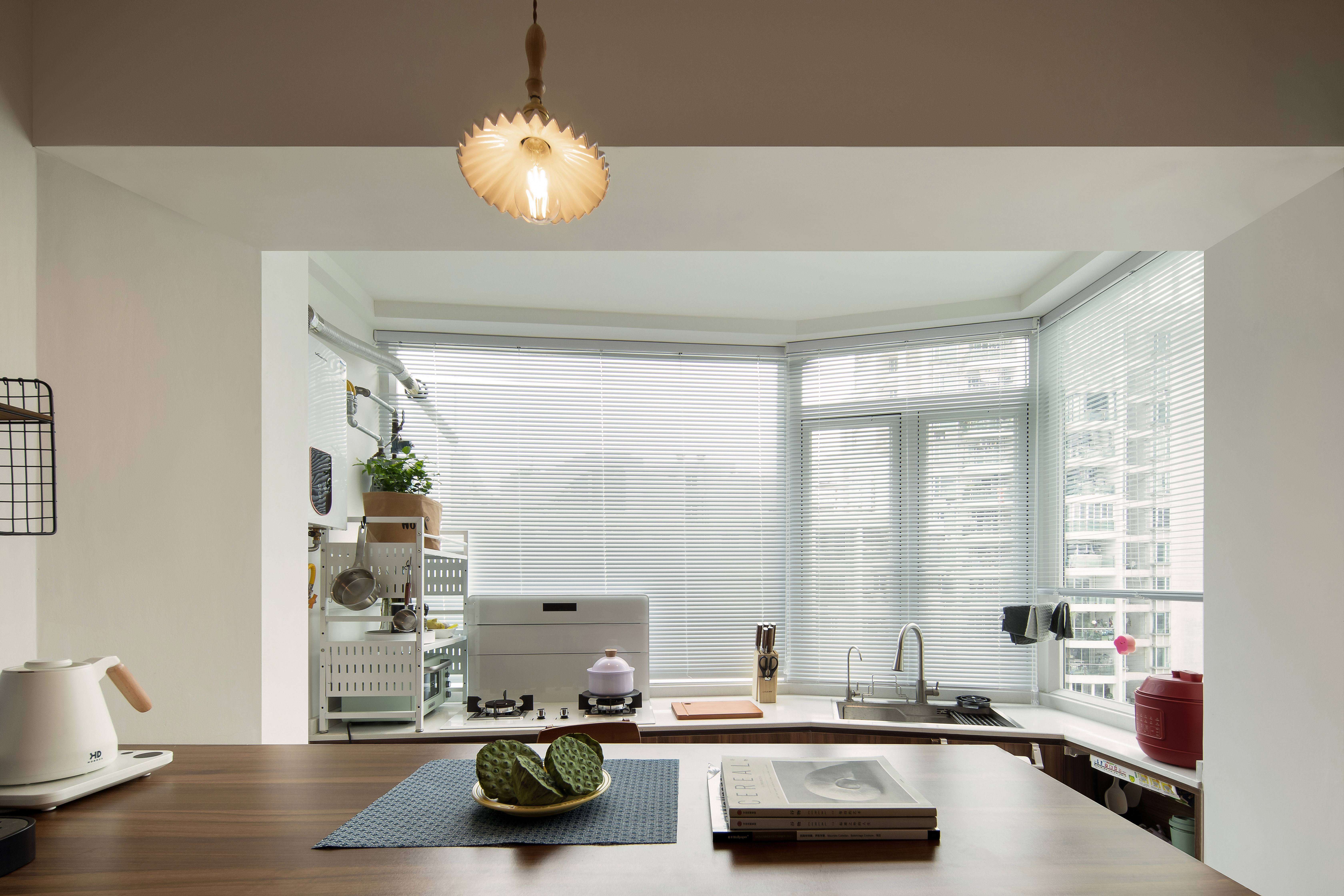

为了将琳琅满目的器物整洁有序地收容，我们按照屋主的意愿，创造了高集合型厨房，重新规划厨房的操作动线，更好利用南向窗户的充裕光线，将原户型的阳台封窗、打通，为厨房“偷来”更大空间。这样也大大增加了厨房操作台面积，扩容整个厨房区域，现在的收纳空间是原本收纳的2倍以上。 丨 说来也巧，当我们刚施工到一半之际，政府就出台一项申明：禁止把卫生间和厨房外扩到阳台。小区物业还和我们谈起，这是小区最后一户把厨房移到阳台的了。幸运地赶上便利的最后一班车，才能利用阳台解决厨房空间不足的难题，打造出屋主的理想厨房。 In order to contain a variety of utensils neatly and orderly, we created a high-set kitchen according to the wishes of the owner, re-planned the operation line of the kitchen, better used the abundant light from the south-facing window, sealed and opened up the original balcony, and "stolen" more space for the kitchen. This has also greatly increased the kitchen countertop area, expanded the entire kitchen area, and now has more than twice the storage space of the original storage. 丨 Coincidentally, halfway through construction, the government issued a declaration prohibiting the extension of bathrooms and kitchens to balconies. The property also talked to us about the last family in the community to move the kitchen to the balcony. Lucky enough to catch the last convenient bus, you can use the balcony to solve the problem of insufficient kitchen space and create the ideal kitchen for homeowners. #实景图▼

#效果图▼

为了控制整体预算，我们现场木工搭配宜家的“HJALPA耶勒帕”拉篮制作成柜体。 In order to control the overall budget, we worked on-site with IKEA's "HJALPA" basket to create cabinets. 同时，我们在封窗时尽可能地外扩更多空间，根据铝合金窗的原有结构，以最大化面积封窗，打造了现在的“三角橱柜”，为厨房的过道腾出更大空间，现在厨房的容量由原本仅容得下一人到可以同时容纳三人。 At the same time, we expanded as much space as possible when sealing windows, according to the original structure of aluminum alloy windows, to maximize the area of the window sealing, to create the current "triangular cabinet", for the kitchen aisle to make more space, now the capacity of the kitchen from only one person to can accommodate three people at the same time.

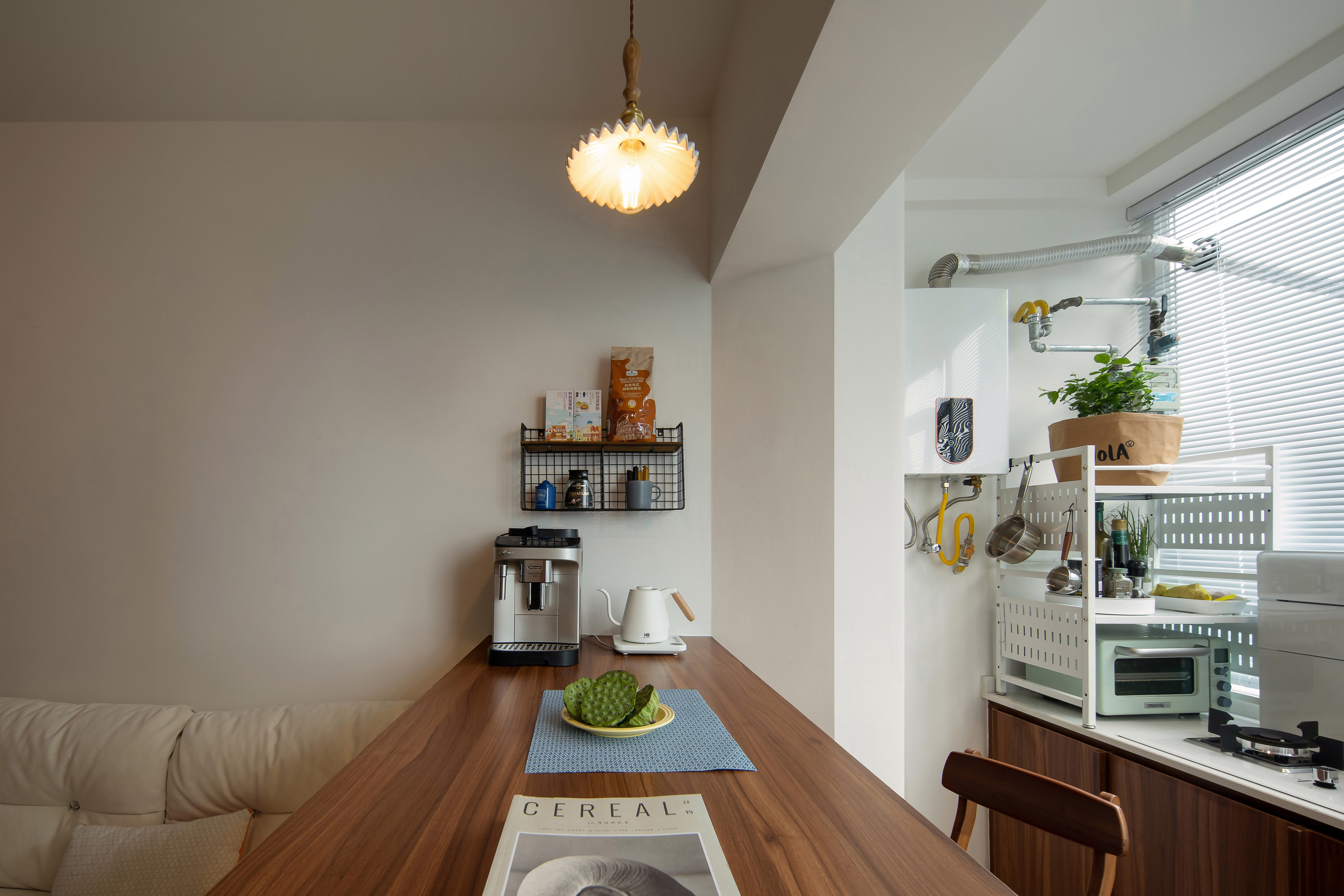

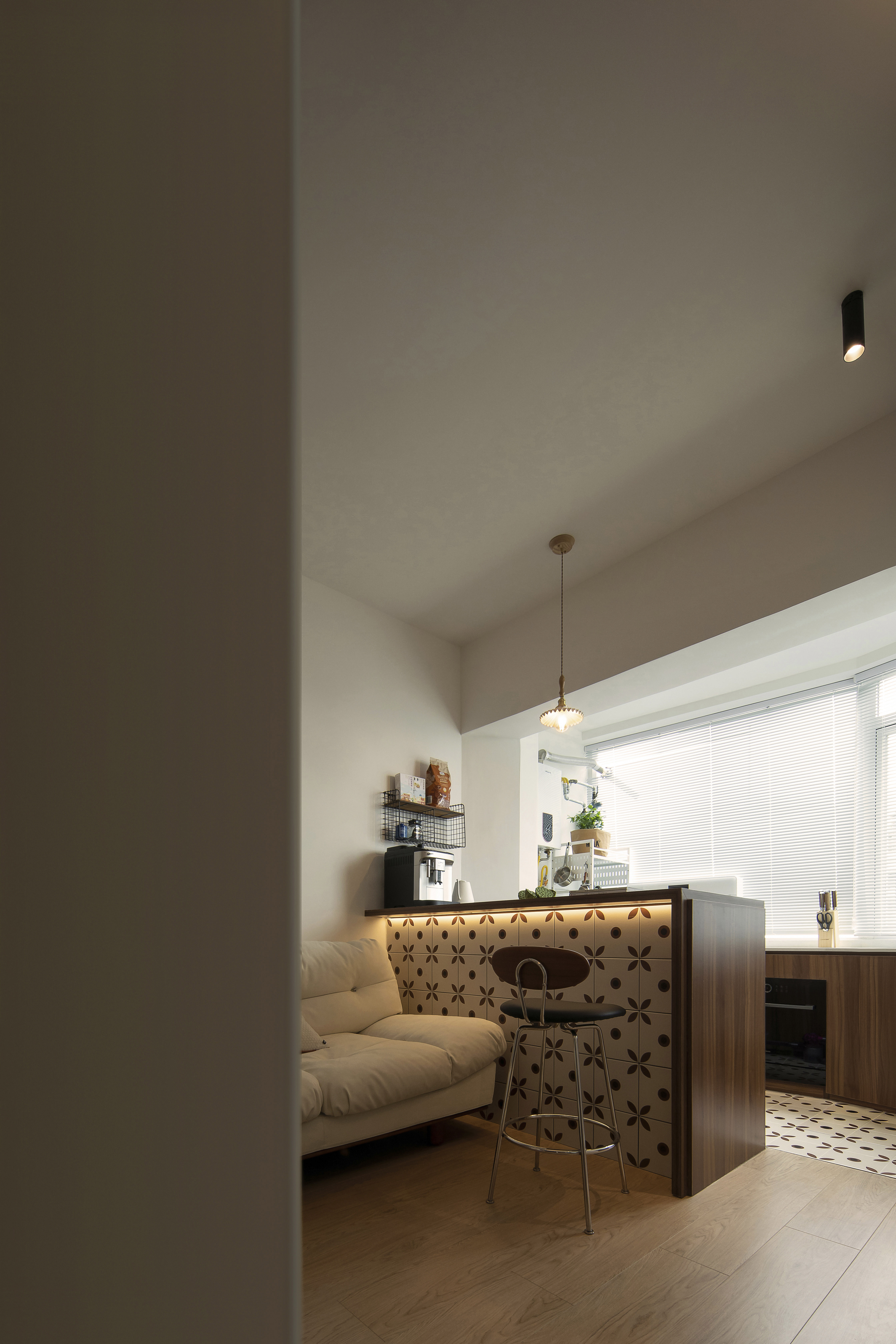

“Sit.Feast on your life”，这里是吧台，是备餐桌，更是餐厅。 "Sit.Feast on your life", this is the bar, the table, and the restaurant. 我们预留一个桌板搭在两边的槽口上，可以延伸出2米的桌面，形成一个达到4-6人使用的餐桌。配上了高脚凳，备餐台变成吧台，吧台变成餐桌。 We reserve a table board on the notches on both sides, which can extend 2 meters of table top, forming a dining table for 4-6 people. With bar stools, the prep becomes a bar and the bar becomes a dining table.

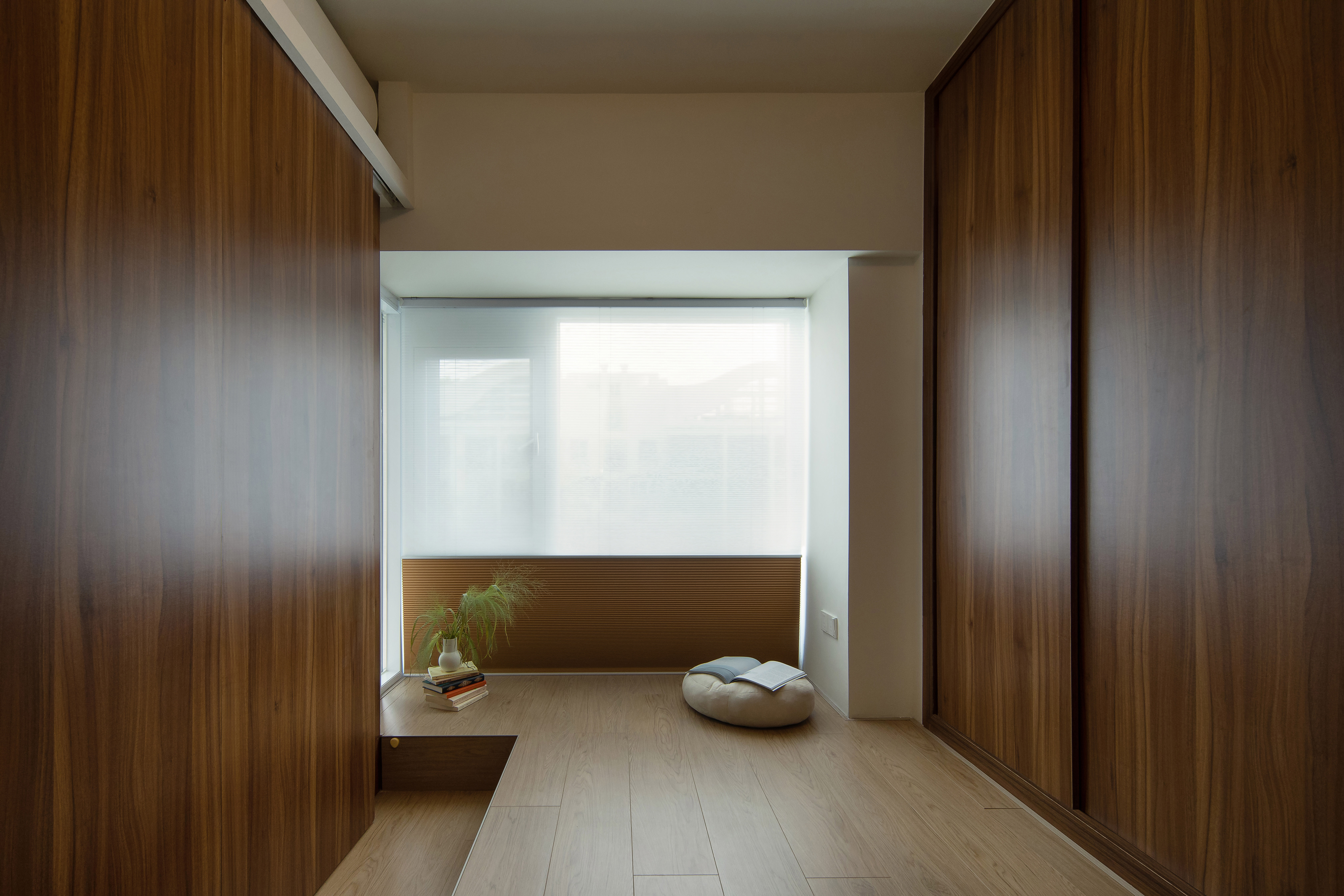

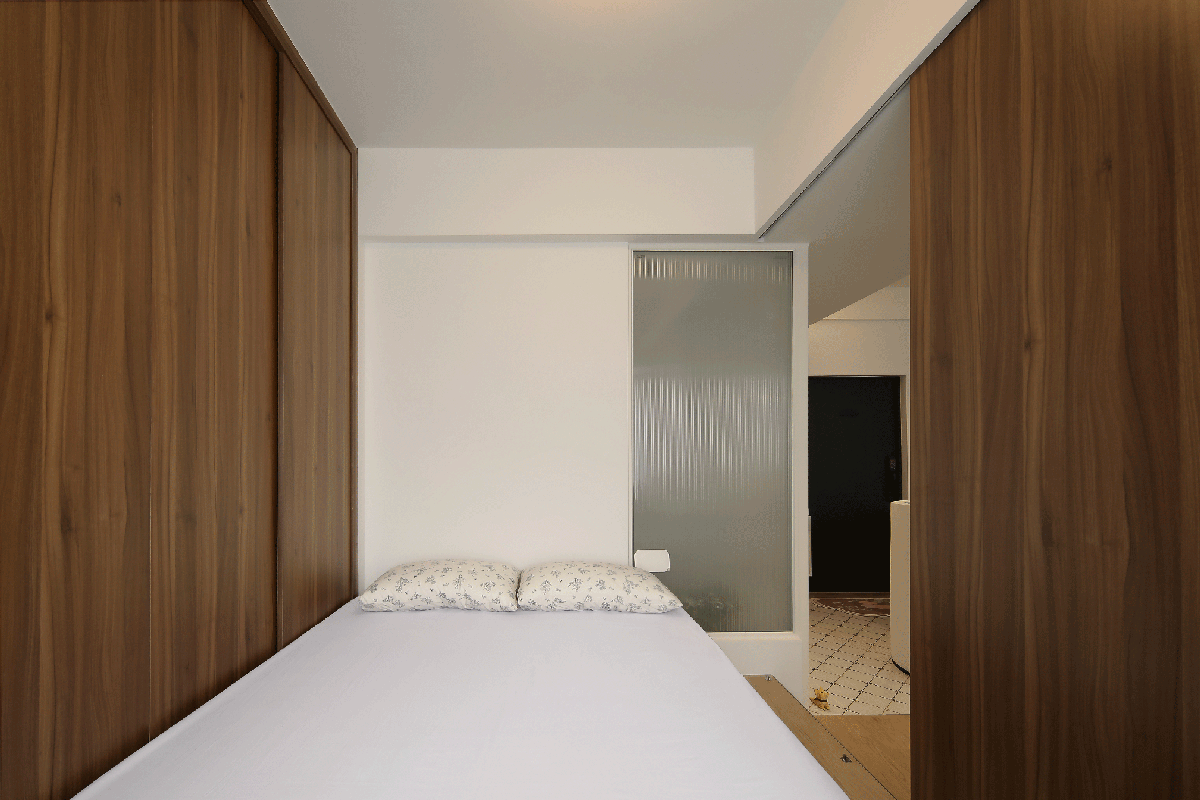

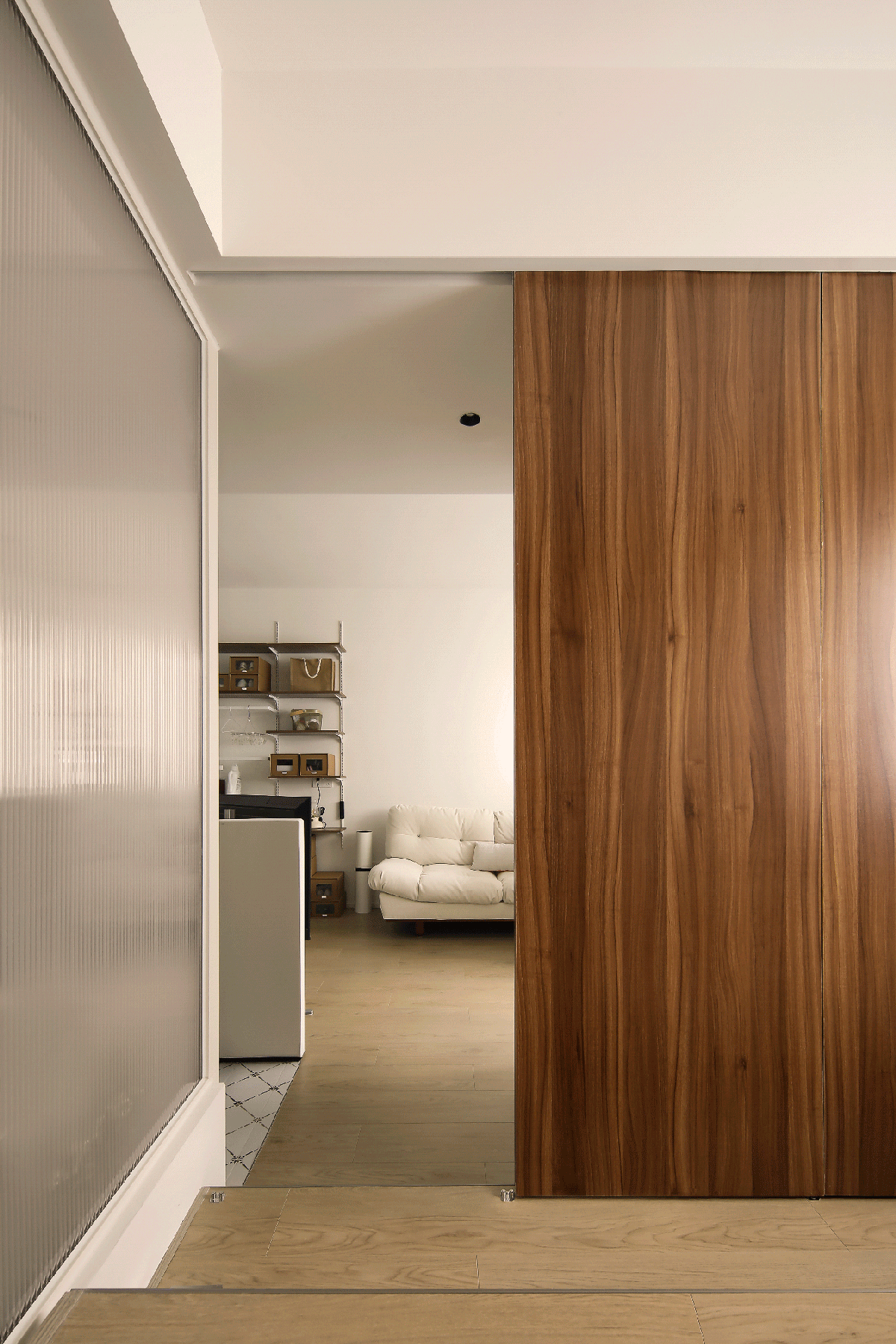

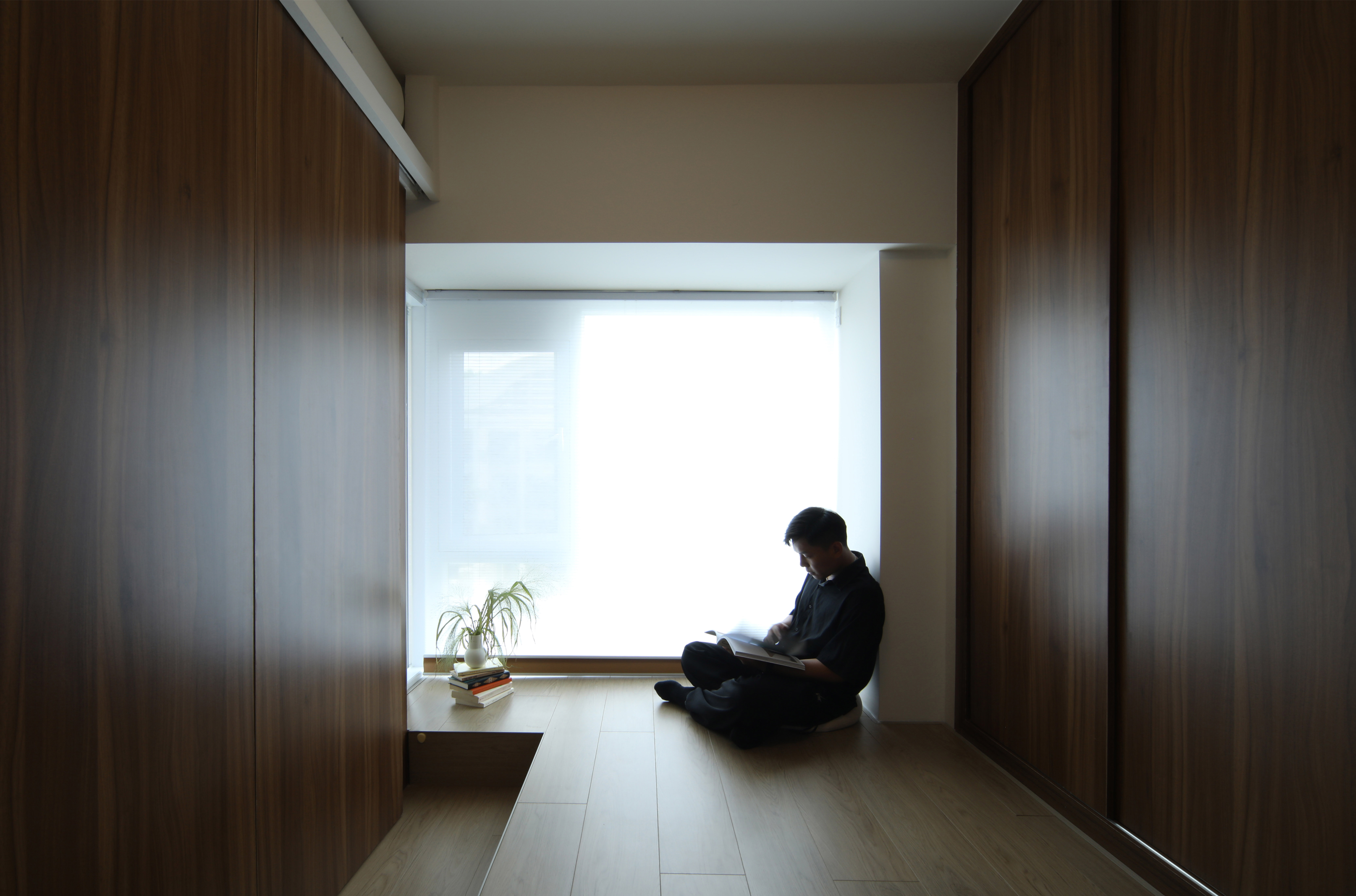

/ 卧室 错落有致的氛围营造 / bedchamber Scattered atmosphere creation ·设置两级步梯，与飘窗持平，增大实用面积 ·利落空间的减法，收纳功能增强 Set up two steps, level with the bay window, to increase the usable area ・Subtraction of neat space, enhanced storage function 起居室设计了两级步梯，增加空间层次之余，更是抬高主卧地面，与原有的飘窗位置持平后，整个主卧扩大了不少实用空间。 The living room is designed with two steps to increase the level of space, but also raise the floor of the master bedroom, which is level with the original bay window, and the entire master bedroom expands a lot of practical space.

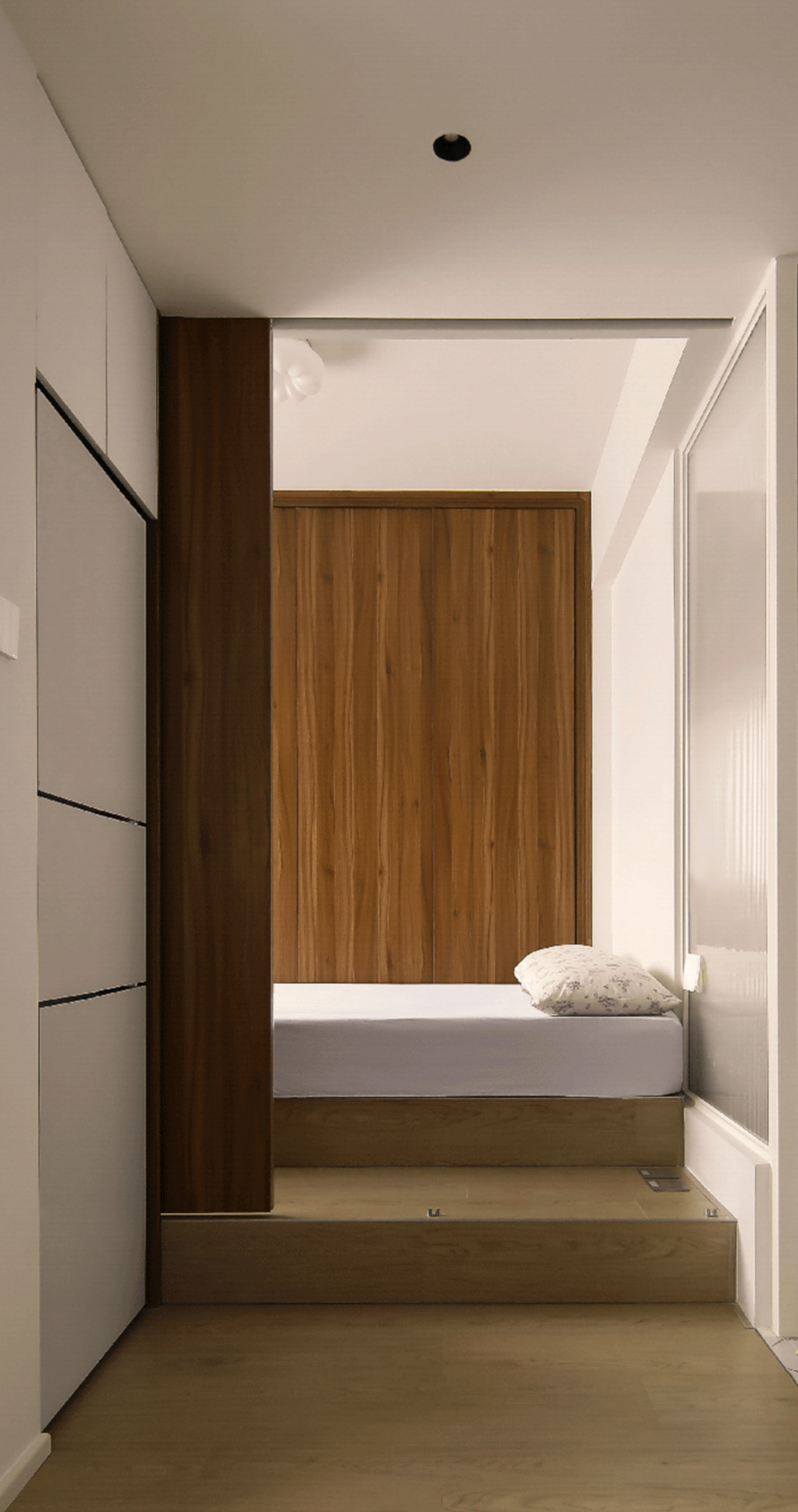

主卧入口处，分两级步梯。 第一级步梯设计得宽适一些，让屋主踏入主卧时安全方便，同时也给收纳柜预留开门的空间；第二级步梯加上床垫，恰好匹配传统床的高度，让屋主找到舒适的睡感。 At the entrance to the master bedroom, there are two steps. The first step staircase is designed to be wide and comfortable, so that the homeowner can enter the master bedroom safely and conveniently, and also reserve space for the storage cabinet to open the door; The second step ladder plus the mattress perfectly matches the height of the traditional bed, allowing the owner to find a comfortable sleeping feeling.

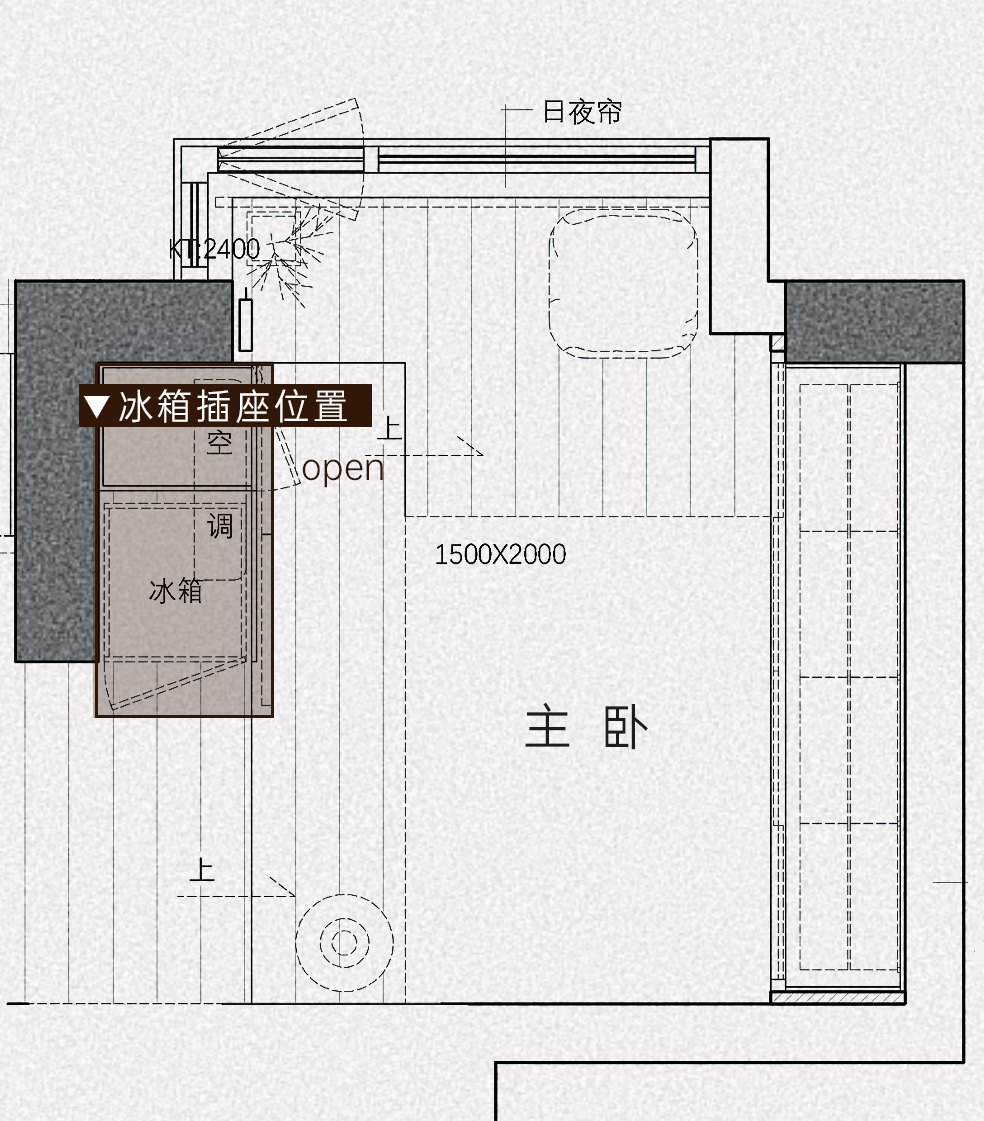

我们在主卧里预留了柜体位置，打造嵌入式冰箱，且利用冰箱背面正面用不上的空间放置了屋主保留的收纳柜。刚好冰箱的插座也安装在收纳柜，方便日后如果有需要拔插头的时候再无需挪出冰箱，直接打开柜门便可。 We reserved a cabinet in the master bedroom to create a built-in refrigerator, and used the unused space on the front of the back of the refrigerator to place the storage cabinet reserved by the owner. It just so happens that the socket of the refrigerator is also installed in the storage cabinet, so that if you need to pull the plug in the future, you don't need to remove the refrigerator, just open the cabinet door directly.

全屋的最大收纳量归功于卧室。木工定制了衣柜的柜体和门板，内部结构则选用宜家的“BOAXEL博阿克塞”壁式储物系统，这强大的收纳功能，让屋主都惊叹：真是一个收纳怪物，可太能装了！ 考虑到与对面住户的楼距较近的情况，所以给窗户装置了“日夜帘”。“日帘”既能保护卧室的隐私又能让光线柔和进入室内，不浪费这美好的采光。在晚上休息时，使用“夜帘”，创造一个更加适合睡眠的环境，提高屋主的睡眠质量。 The largest storage capacity in the whole house is attributed to the bedroom. The carpenter customized the cabinet and door panels of the wardrobe, and the internal structure was selected from IKEA's "BOAXEL" wall storage system, which made the homeowner marvel: what a storage monster, but so capable! In view of the proximity to the opposite household, a "day and night curtain" was installed in the windows. The "sun curtain" can not only protect the privacy of the bedroom, but also allow soft light to enter the room, without wasting this beautiful lighting. When resting at night, use the "night curtain" to create a more suitable environment for sleep and improve the sleep quality of the homeowner.

— 再小的家，也拾获大大的幸福 从入户到客厅，从餐厅到厨房，再到卧室，这个仅有31平的家不断延伸出更多幸福感，和有趣的人一起碰撞出更多生活的火花。【花漾】主题，是描述家中每一个充满活力的场景，也是描绘我们保持生命鲜活的存在，像是绽放的花朵，朝着绚丽多姿的世界，继续歌颂吧！ . — No matter how small a home is, it can also find great happiness From the home to the living room, from the dining room to the kitchen, to the bedroom, this home of only 31 square meters continues to extend more happiness, and collide with interesting people to create more sparks of life. The theme of "Flowers" is to describe every vibrant scene in the home, but also to depict our existence that keeps life alive, like a blooming flower, towards the gorgeous world, continue to sing!
